00550770

Active

Menbers

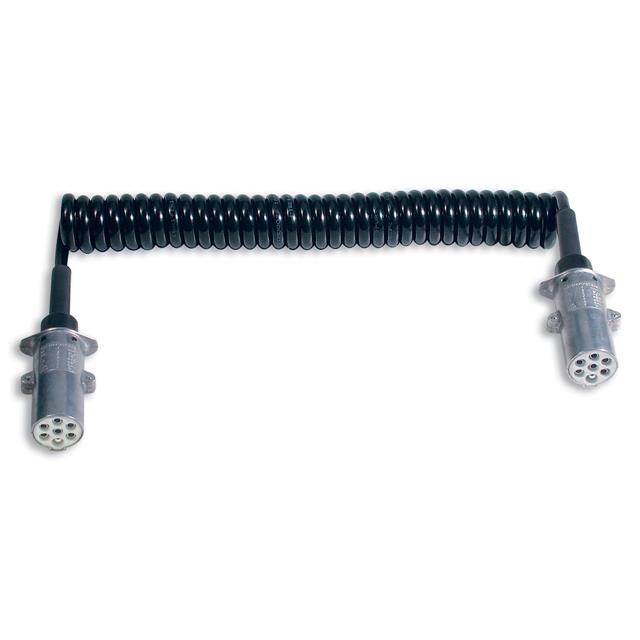

CIRC CBL 7POS PLUG TO PLUG

Deep-Dive with AI

Search across all available documentation for this part.

00550770

Active

Menbers

CIRC CBL 7POS PLUG TO PLUG

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	00550770

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	7
1st Connector Number of Positions Loaded	All
1st Connector Type	Plug
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions Loaded	All
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round Coiled
Color	Black
Ingress Protection	IP65 - Dust Tight, Water Resistant
Shielding	Unshielded
Usage	Industrial Environments

- Series

Part	2nd Connector Number of Positions	Shielding	2nd Connector Type	1st Connector Number of Positions Loaded	Assembly Configuration	2nd Connector Mounting Type	1st Connector Mounting Type	1st Connector Number of Positions	Color	1st Connector Gender	2nd Connector Gender	Usage	2nd Connector Number of Positions Loaded	Cable Type	1st Connector Type	Ingress Protection	Cable Material	Insert Material	Number of Positions	Voltage Rating	Fastening Type	Orientation	Termination	Applications	Connector Type	Primary Material	Features	Mounting Feature	Cable Opening [custom]	Cable Opening [custom]	Backshell Material, Plating	Shell Material	Mounting Type	2nd Connector Type	Contact Material	Contact Finish - Mating	For Use With/Related Products	Accessory Type
Menbers 00521135	15	Unshielded	Plug	All	Standard	Free Hanging (In-Line)	Free Hanging (In-Line)	15	Green	Female Sockets	Female Sockets	Industrial Environments	All	Round Coiled	Plug	IP65 - Dust Tight Water Resistant	Polyurethane (PUR)
Menbers 00585700		Unshielded							Black									Plastic	7	24 VDC	Bayonet Lock	Keyed	Crimp	Automotive Industrial	Male Pins Receptacle	Plastic	Backshell Cap (Cover)	Flange	15.5 mm	0.61 in	Plastic	Plastic	Free Hanging (In-Line) Panel Mount
Menbers 00250962
Menbers 00550770		Unshielded	Plug	All	Standard	Free Hanging (In-Line)	Free Hanging (In-Line)	7	Black	Female Sockets	Female Sockets	Industrial Environments	All	Round Coiled	Plug	IP65 - Dust Tight Water Resistant	Polyurethane (PUR)
Menbers 00586800		Unshielded							Black									Plastic		24 VDC	Bayonet Lock	Keyed	Crimp	Automotive Industrial	Male Pins Receptacle	Plastic	Backshell Cap (Cover)	Flange	15.5 mm	0.61 in	Plastic	Plastic	Free Hanging (In-Line) Panel Mount Right Angle
Menbers 00555770	15	Unshielded	Plug	All	Standard	Free Hanging (In-Line)	Free Hanging (In-Line)	15	Black	Female Sockets	Female Sockets (2)	Industrial Environments	All	Round Coiled	Plug	IP65 - Dust Tight Water Resistant	Polyurethane (PUR)																	2
Menbers 00583970		Unshielded							Black									Plastic	7	24 VDC	Bayonet Lock	Keyed	Screw	Automotive Industrial	Male Pins Receptacle	Plastic	Backshell Cap (Cover)	Flange			Plastic	Plastic	Free Hanging (In-Line) Panel Mount
Menbers 00591100		Unshielded							Silver										7	24 VDC	Push-Pull	Keyed	Solder Tabs	Automotive Industrial	Female Sockets Male Pins Plug	Metal	Backshell Strain Relief				Aluminum	Aluminum	Free Hanging (In-Line)		Brass	Nickel
Menbers 00586870		Unshielded							Black									Plastic		24 VDC	Bayonet Lock	Keyed	Crimp	Automotive Industrial	Male Pins Receptacle	Plastic	Backshell Cap (Cover)	Flange			Plastic	Plastic	Free Hanging (In-Line) Panel Mount Right Angle
Menbers 08075360																																					Batteries	Disconnect Switch

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 61.20

Description

General part information

- Series

Circular Cable Assembly Unshielded

Documents

Technical documentation and resources

No documents available
