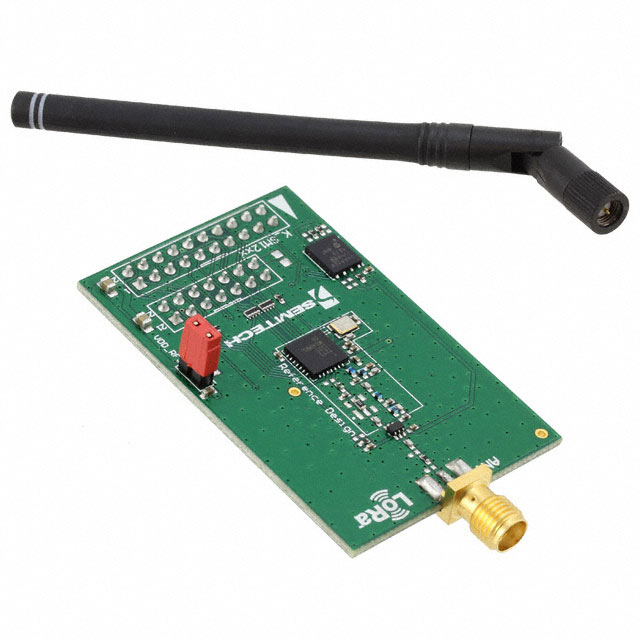

SX1272RF1BAS

Obsolete

Semtech Corporation

RF TXRX MOD ISM<1GHZU.FL TH

Search across all available documentation for this part.

Obsolete

Semtech Corporation

RF TXRX MOD ISM<1GHZU.FL TH

Technical Specifications

Parameters and characteristics for this part

Part	RF Family/Standard	Package / Case	Antenna Type	Current - Receiving	Frequency [Min]	Frequency [Max]	Sensitivity	Operating Temperature [Max]	Operating Temperature [Min]	Current - Transmitting	Voltage - Supply [Max]	Voltage - Supply [Min]	Modulation	Serial Interfaces	Mounting Type	Power - Output	Frequency	For Use With/Related Products	Supplied Contents	Type
Semtech Corporation SX1272RF1BAS	General ISM < 1GHz	Module	Antenna Not Included U.FL	11.2 mA	860 MHz	1.02 GHz	-137 dBm	85 °C	-40 °C	125 mA	3.7 V	1.8 V	FSK GFSK GMSK MSK OOK	SPI	Through Hole	20 dBm
Semtech Corporation SX1272DVK1CAS																	915 MHz	SX1272	Board(s) Cable(s)	Transceiver; LoRa®

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 114.89

General part information

General ISM < 1GHz Transceiver Module 860MHz ~ 1.02GHz Antenna Not Included, U.FL Through Hole

Technical documentation and resources

No documents available
