SX1272DVK1CAS

Obsolete

Semtech Corporation

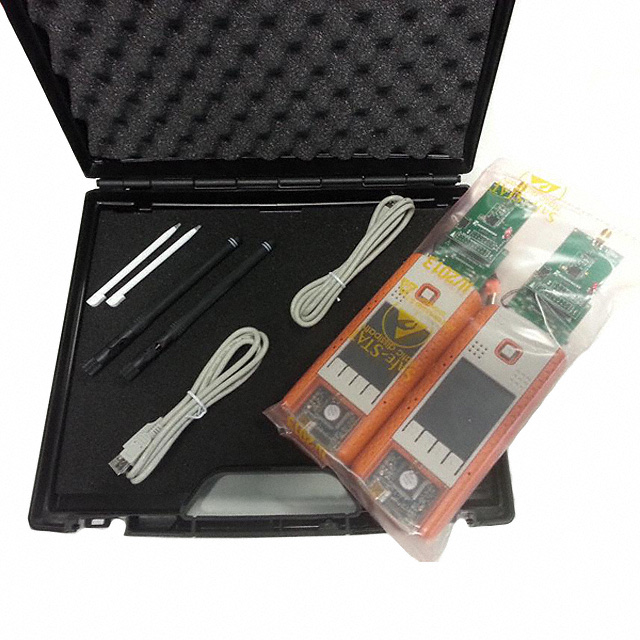

SX1272 915MHZ DEVELOPMENT KIT

Search across all available documentation for this part.

Obsolete

Semtech Corporation

SX1272 915MHZ DEVELOPMENT KIT

Technical Specifications

Parameters and characteristics for this part

Specification	SX1272DVK1CAS

For Use With/Related Products	SX1272
Frequency	915 MHz
Supplied Contents	Cable(s), Board(s)
Type	Transceiver; LoRa®

Part	RF Family/Standard	Package / Case	Antenna Type	Current - Receiving	Frequency [Min]	Frequency [Max]	Sensitivity	Operating Temperature [Max]	Operating Temperature [Min]	Current - Transmitting	Voltage - Supply [Max]	Voltage - Supply [Min]	Modulation	Serial Interfaces	Mounting Type	Power - Output	Frequency	For Use With/Related Products	Supplied Contents	Type
Semtech Corporation SX1272RF1BAS	General ISM < 1GHz	Module	Antenna Not Included U.FL	11.2 mA	860 MHz	1.02 GHz	-137 dBm	85 °C	-40 °C	125 mA	3.7 V	1.8 V	FSK GFSK GMSK MSK OOK	SPI	Through Hole	20 dBm
Semtech Corporation SX1272DVK1CAS																	915 MHz	SX1272	Board(s) Cable(s)	Transceiver; LoRa®

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

- SX1272 Transceiver; LoRa® 915MHz Evaluation Board

Technical documentation and resources

No documents available
