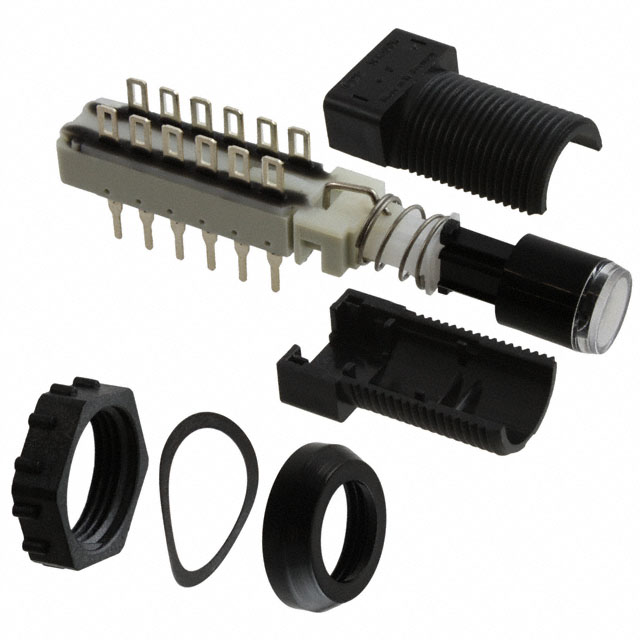

ZFA FA200 BK GN 4U EE

Active

Littelfuse/Commercial Vehicle Products

SWITCH PUSH 4PDT 0.5A 125V

Search across all available documentation for this part.

Active

Littelfuse/Commercial Vehicle Products

SWITCH PUSH 4PDT 0.5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	ZFA FA200 BK GN 4U EE

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	4PDT
Color - Actuator/Cap	Green
Current Rating (Amps)	500 mA
Electrical Life	100000 Cycles
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Right Angle, Rear
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	14 mm
Switch Function	On-On
Termination Style	PC Pin, Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Color - Actuator/Cap	Voltage Rating - DC	Actuator Marking	Voltage Rating - AC	Switch Function	Current Rating (Amps)	Type	Circuit	Termination Style	Actuator Type	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Mounting Type	Mechanical Life
Littelfuse/Commercial Vehicle Products ZFAFA200GYGN2UEE
Littelfuse/Commercial Vehicle Products ZFA FA200 BK GN 4U EE	Green	30 V	No Marking	125 V	On-On	500 mA	Standard	4PDT	PC Pin Solder Lug	Button Round	14 mm	-40 °C	70 °C	100000 Cycles	Panel Mount Rear Right Angle	100000 Cycles
Littelfuse/Commercial Vehicle Products ZFA FA200 BK OG 4U EE	Orange	30 V	No Marking	125 V	On-On	500 mA	Standard	4PDT	PC Pin Solder Lug	Button Round	14 mm	-40 °C	70 °C	100000 Cycles	Panel Mount Rear Right Angle	100000 Cycles
Littelfuse/Commercial Vehicle Products ZFAFA200BKGN2UEE	Green	30 V	No Marking	125 V	On-On	500 mA	Standard	DPDT	PC Pin Solder Lug	Button Round	14 mm	-40 °C	70 °C	100000 Cycles	Panel Mount Rear Right Angle	100000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	108	$ 17.07

General part information

Pushbutton Switch 4PDT Standard Panel Mount, Right Angle, Rear
