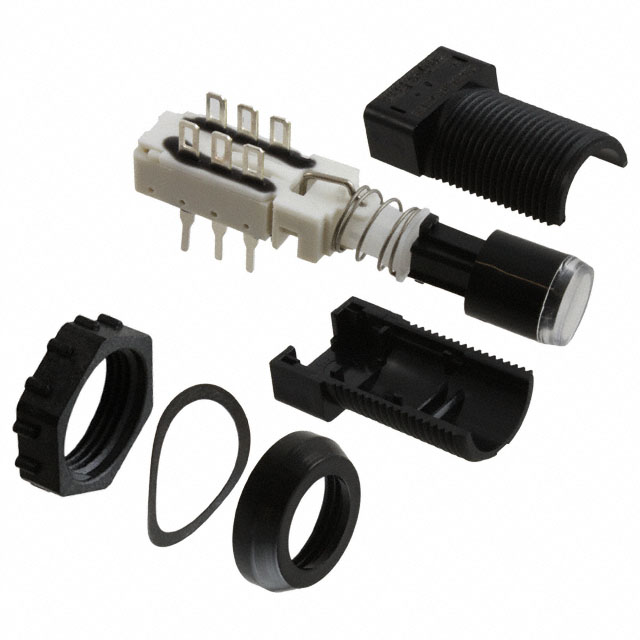

ZFAFA200BKGN2UEE
ActiveLittelfuse/Commercial Vehicle Products
SWITCH PUSH DPDT 0.5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZFAFA200BKGN2UEE
ActiveLittelfuse/Commercial Vehicle Products
SWITCH PUSH DPDT 0.5A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZFAFA200BKGN2UEE |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | DPDT |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 500 mA |
| Electrical Life | 100000 Cycles |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Right Angle, Rear |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 14 mm |
| Switch Function | On-On |
| Termination Style | PC Pin, Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.20 | |
| 18 | $ 20.94 | |||
| 36 | $ 20.03 | |||
| 54 | $ 19.51 | |||
| 108 | $ 18.66 | |||
| 252 | $ 17.66 | |||
| 504 | $ 16.89 | |||
Description
General part information
ZFA Series
Pushbutton Switch DPDT Standard Panel Mount, Right Angle, Rear
