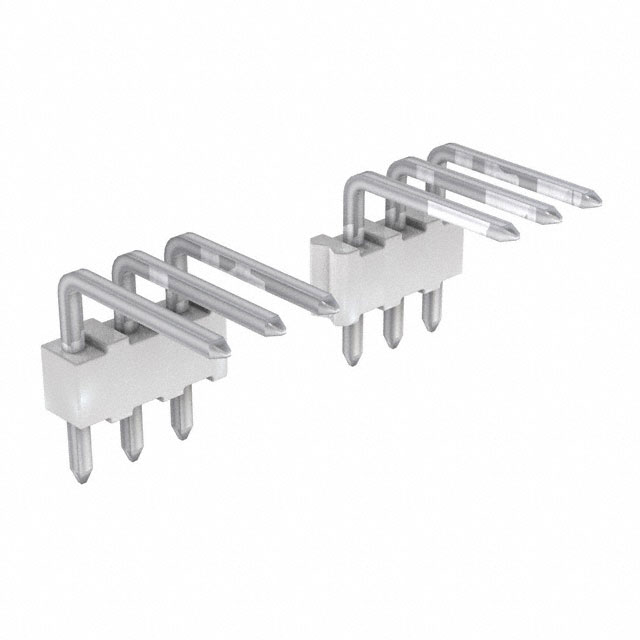

0022052111

Active

Molex

CONN HEADER R/A 11POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0022052111

Active

Molex

CONN HEADER R/A 11POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022052111

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	60 Áin
Contact Finish Thickness - Mating	1.52 Ám
Contact Finish Thickness - Post	60 µin
Contact Finish Thickness - Post	1.52 µm
Contact Length - Mating	0.369 "
Contact Length - Mating	9.37 mm
Contact Length - Post	3.15 mm
Contact Length - Post	0.124 "
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	White
Insulation Height	0.13 in
Insulation Height	3.3 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

002205 Series

2.50mm Pitch, Mini-SPOX PCB Header, Single Row, Right-Angle, Through Hole, Tin Plating, Friction Lock, 4 Circuits, Bag, 3.50mm PC Tail Length

...

Part	Number of Positions	Pitch - Mating	Pitch - Mating	Shrouding	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Insulation Color	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Applications	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Number of Rows	Mounting Type	Termination	Style	Contact Shape	Connector Type	Insulation Material	Material Flammability Rating	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]
Molex 0022052111	11	0.1 in	2.54 mm	Unshrouded	Tin	60 µin	1.52 µm	All	White	Push-Pull	3.15 mm	0.124 "	0.369 "	9.37 mm	Automotive General Purpose Medical Telecommunications	0.13 in	3.3 mm	60 Áin	1.52 Ám	Male Pin	1	Through Hole Right Angle	Solder	Board to Board Cable	Square	Header	Nylon Polyamide (PA)	UL94 V-0
Molex 0022051122	12	0.098 in	2.5 mm	Shrouded - 1 Wall	Tin			All	Natural	Friction Lock			0.295 in	7.49 mm				200 µin	5.08 µm	Male Pin	1	Through Hole Right Angle	Solder	Board to Cable/Wire	Square	Header	Nylon Polyamide (PA)	UL94 V-0	Brass	0.134 in	3.4 mm
Molex 0022051142	14	0.098 in	2.5 mm	Shrouded - 1 Wall	Tin			All	Natural	Friction Lock			0.295 in	7.49 mm				200 µin	5.08 µm	Male Pin	1	Through Hole Right Angle	Solder	Board to Cable/Wire	Square	Header	Nylon Polyamide (PA)	UL94 V-0	Brass	0.134 in	3.4 mm
Molex 0022053131	13	0.1 in	2.54 mm	Shrouded - 1 Wall	Tin	100 µin	2.54 µm	All	White	Friction Lock			0.264 in	6.7 mm	Automotive General Purpose Medical Telecommunications	0.256 in	6.5 mm	100 çin	2.54 çm	Male Pin	1	Through Hole Right Angle	Solder	Board to Board Cable	Square	Header	Nylon Polyamide (PA)	UL94 V-0	Brass	0.141 "	3.58 mm
Molex 0022052151	15	0.1 in	2.54 mm	Unshrouded	Tin	60 µin	1.52 µm	All	White	Push-Pull	3.15 mm	0.124 "	0.369 "	9.37 mm	Automotive General Purpose Medical Telecommunications	0.13 in	3.3 mm	60 Áin	1.52 Ám	Male Pin	1	Through Hole Right Angle	Solder	Board to Board Cable	Square	Header	Nylon Polyamide (PA)	UL94 V-0
Molex 0022053091	9	0.1 in	2.54 mm	Shrouded - 1 Wall	Tin	100 µin	2.54 µm	All	White	Friction Lock			0.264 in	6.7 mm	Automotive General Purpose Medical Telecommunications	0.256 in	6.5 mm	100 çin	2.54 çm	Male Pin	1	Through Hole Right Angle	Solder	Board to Board Cable	Square	Header	Nylon Polyamide (PA)	UL94 V-0	Brass	0.141 "	3.58 mm
Molex 22122194
Molex 0022053211	21	0.1 in	2.54 mm	Shrouded - 1 Wall	Tin	100 in	2.54 m	All	White	Friction Lock			0.264 in	6.7 mm	Automotive General Purpose Medical Telecommunications	0.256 in	6.5 mm			Male Pin	1	Through Hole Right Angle	Solder	Board to Board Cable	Square	Header	Nylon Polyamide (PA)	UL94 V-0	Brass	0.141 "	3.58 mm	100 in	2.54 m
Molex 0022051052		0.098 in	2.5 mm	Shrouded - 1 Wall	Tin			All	Natural	Friction Lock			0.295 in	7.49 mm				200 µin	5.08 µm	Male Pin	1	Through Hole Right Angle	Solder	Board to Cable/Wire	Square	Header	Nylon Polyamide (PA)	UL94 V-0	Brass	0.134 in	3.4 mm
Molex 0022057068	6	0.1 in	2.54 mm	Shrouded - 1 Wall	Tin	60 µin	1.52 µm	All	Natural	Friction Lock			0.264 in	6.7 mm	Automotive General Purpose Medical Telecommunications	0.228 in	5.8 mm	60 Áin	1.52 Ám	Male Pin	1	Through Hole Right Angle	Solder	Board to Board Cable	Square	Header	Polyamide (PA66) Nylon 6/6	UL94 V-0	Brass	0.15 in	3.81 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.38
		10	$ 1.14
		100	$ 0.95
		1000	$ 0.76
		5000	$ 0.66
		10000	$ 0.63

Description

General part information

002205 Series

2.50mm Pitch, Mini-SPOX PCB Header, Single Row, Right-Angle, Through Hole, Tin Plating, Friction Lock, 4 Circuits, Bag, 3.50mm PC Tail Length
