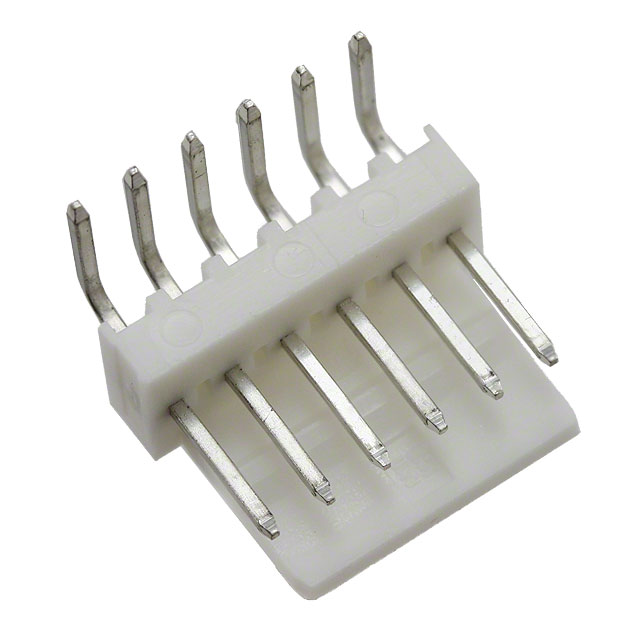

0022057068

Active

Molex

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 2.50, 2.54mm Centerline Pitch Spec

0022057068

Active

Molex

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet 2.50, 2.54mm Centerline Pitch Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022057068

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	60 Áin
Contact Finish Thickness - Mating	1.52 Ám
Contact Finish Thickness - Post	60 µin
Contact Finish Thickness - Post	1.52 µm
Contact Length - Mating	6.7 mm
Contact Length - Mating	0.264 in
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	5.8 mm
Insulation Height	0.228 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Board, Cable
Termination	Solder

002205 Series

2.50mm Pitch, Mini-SPOX PCB Header, Single Row, Right-Angle, Through Hole, Tin Plating, Friction Lock, 4 Circuits, Bag, 3.50mm PC Tail Length

...

Part	Number of Positions	Pitch - Mating	Pitch - Mating	Shrouding	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Insulation Color	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Applications	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Number of Rows	Mounting Type	Termination	Style	Contact Shape	Connector Type	Insulation Material	Material Flammability Rating	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]
Molex 0022052111	11	0.1 in	2.54 mm	Unshrouded	Tin	60 µin	1.52 µm	All	White	Push-Pull	3.15 mm	0.124 "	0.369 "	9.37 mm	Automotive General Purpose Medical Telecommunications	0.13 in	3.3 mm	60 Áin	1.52 Ám	Male Pin	1	Through Hole Right Angle	Solder	Board to Board Cable	Square	Header	Nylon Polyamide (PA)	UL94 V-0
Molex 0022051122	12	0.098 in	2.5 mm	Shrouded - 1 Wall	Tin			All	Natural	Friction Lock			0.295 in	7.49 mm				200 µin	5.08 µm	Male Pin	1	Through Hole Right Angle	Solder	Board to Cable/Wire	Square	Header	Nylon Polyamide (PA)	UL94 V-0	Brass	0.134 in	3.4 mm
Molex 0022051142	14	0.098 in	2.5 mm	Shrouded - 1 Wall	Tin			All	Natural	Friction Lock			0.295 in	7.49 mm				200 µin	5.08 µm	Male Pin	1	Through Hole Right Angle	Solder	Board to Cable/Wire	Square	Header	Nylon Polyamide (PA)	UL94 V-0	Brass	0.134 in	3.4 mm
Molex 0022053131	13	0.1 in	2.54 mm	Shrouded - 1 Wall	Tin	100 µin	2.54 µm	All	White	Friction Lock			0.264 in	6.7 mm	Automotive General Purpose Medical Telecommunications	0.256 in	6.5 mm	100 çin	2.54 çm	Male Pin	1	Through Hole Right Angle	Solder	Board to Board Cable	Square	Header	Nylon Polyamide (PA)	UL94 V-0	Brass	0.141 "	3.58 mm
Molex 0022052151	15	0.1 in	2.54 mm	Unshrouded	Tin	60 µin	1.52 µm	All	White	Push-Pull	3.15 mm	0.124 "	0.369 "	9.37 mm	Automotive General Purpose Medical Telecommunications	0.13 in	3.3 mm	60 Áin	1.52 Ám	Male Pin	1	Through Hole Right Angle	Solder	Board to Board Cable	Square	Header	Nylon Polyamide (PA)	UL94 V-0
Molex 0022053091	9	0.1 in	2.54 mm	Shrouded - 1 Wall	Tin	100 µin	2.54 µm	All	White	Friction Lock			0.264 in	6.7 mm	Automotive General Purpose Medical Telecommunications	0.256 in	6.5 mm	100 çin	2.54 çm	Male Pin	1	Through Hole Right Angle	Solder	Board to Board Cable	Square	Header	Nylon Polyamide (PA)	UL94 V-0	Brass	0.141 "	3.58 mm
Molex 22122194
Molex 0022053211	21	0.1 in	2.54 mm	Shrouded - 1 Wall	Tin	100 in	2.54 m	All	White	Friction Lock			0.264 in	6.7 mm	Automotive General Purpose Medical Telecommunications	0.256 in	6.5 mm			Male Pin	1	Through Hole Right Angle	Solder	Board to Board Cable	Square	Header	Nylon Polyamide (PA)	UL94 V-0	Brass	0.141 "	3.58 mm	100 in	2.54 m
Molex 0022051052		0.098 in	2.5 mm	Shrouded - 1 Wall	Tin			All	Natural	Friction Lock			0.295 in	7.49 mm				200 µin	5.08 µm	Male Pin	1	Through Hole Right Angle	Solder	Board to Cable/Wire	Square	Header	Nylon Polyamide (PA)	UL94 V-0	Brass	0.134 in	3.4 mm
Molex 0022057068	6	0.1 in	2.54 mm	Shrouded - 1 Wall	Tin	60 µin	1.52 µm	All	Natural	Friction Lock			0.264 in	6.7 mm	Automotive General Purpose Medical Telecommunications	0.228 in	5.8 mm	60 Áin	1.52 Ám	Male Pin	1	Through Hole Right Angle	Solder	Board to Board Cable	Square	Header	Polyamide (PA66) Nylon 6/6	UL94 V-0	Brass	0.15 in	3.81 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.21
		10	$ 1.03
		100	$ 0.85
		1000	$ 0.79

Description

General part information

002205 Series

2.50mm Pitch, Mini-SPOX PCB Header, Single Row, Right-Angle, Through Hole, Tin Plating, Friction Lock, 4 Circuits, Bag, 3.50mm PC Tail Length
