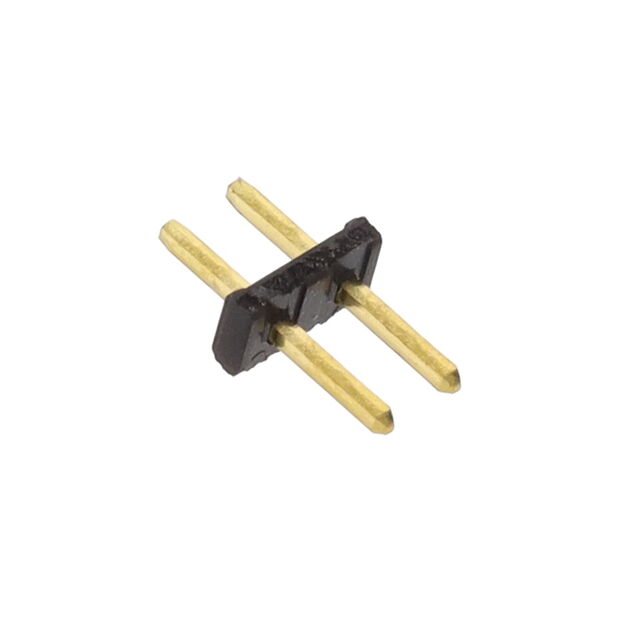

A3C-2P-2DSA(30)

Active

Hirose Electric USA, Inc.

2.0MM PITCH DOUBLE ROW MINIATURE CONNECTORS

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

2.0MM PITCH DOUBLE ROW MINIATURE CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	A3C-2P-2DSA(30)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Length - Post	0.102 in
Contact Length - Post	2.6 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.9 mm
Insulation Height	0.035 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	7 mm
Overall Contact Length	0.276 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

Part	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Mounting Type	Contact Material	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Termination	Style	Number of Positions Loaded	Insulation Color	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Number of Positions	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Connector Type	Contact Type	Insulation Height	Insulation Height	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Voltage Rating	Mated Stacking Heights
Hirose Electric USA, Inc. A3C-2P-2DSA(30)	7 mm	0.276 in	Gold	Through Hole	Brass	2	0.079 in	2 mm	Push-Pull	Solder	Board to Board Cable	All	Black	0.138 in	3.5 mm	UL94 V-0	2	Nylon Polyamide (PA)	0.079 in	2 mm	Square	85 °C	-55 °C	0.102 in	2.6 mm	Header	Male Pin	0.9 mm	0.035 in	Unshrouded
Hirose Electric USA, Inc. A3C-2P-2DSA	7 mm	0.276 in	Gold	Through Hole	Brass	2	0.079 in	2 mm	Push-Pull	Solder	Board to Board Cable	All	Black	0.138 in	3.5 mm	UL94 V-0	2	Nylon Polyamide (PA)			Square	85 °C	-55 °C	0.102 in	2.6 mm	Header	Male Pin	0.9 mm	0.035 in	Unshrouded	Flash	0.203 Ám	8 Áin	Gold	200 V	5.1 mm 7.9 mm
