A3C-2P-2DSA

Obsolete

Hirose Electric USA, Inc.

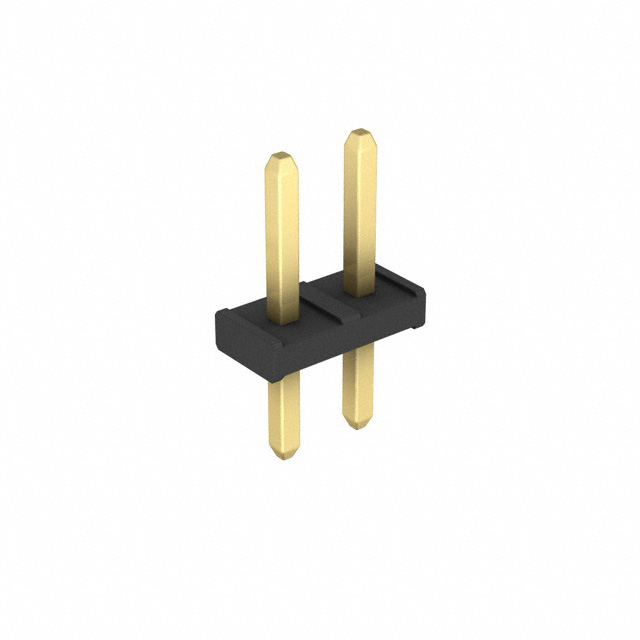

BOARD CONNECTOR, 2 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.079 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE,

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

BOARD CONNECTOR, 2 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.079 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE,

Technical Specifications

Parameters and characteristics for this part

Specification	A3C-2P-2DSA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Length - Post	0.102 in
Contact Length - Post	2.6 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.9 mm
Insulation Height	0.035 in
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	7.9 mm, 5.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	7 mm
Overall Contact Length	0.276 in
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	200 V

Part	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Mounting Type	Contact Material	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Termination	Style	Number of Positions Loaded	Insulation Color	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Number of Positions	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Connector Type	Contact Type	Insulation Height	Insulation Height	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Voltage Rating	Mated Stacking Heights
Hirose Electric USA, Inc. A3C-2P-2DSA(30)	7 mm	0.276 in	Gold	Through Hole	Brass	2	0.079 in	2 mm	Push-Pull	Solder	Board to Board Cable	All	Black	0.138 in	3.5 mm	UL94 V-0	2	Nylon Polyamide (PA)	0.079 in	2 mm	Square	85 °C	-55 °C	0.102 in	2.6 mm	Header	Male Pin	0.9 mm	0.035 in	Unshrouded
Hirose Electric USA, Inc. A3C-2P-2DSA	7 mm	0.276 in	Gold	Through Hole	Brass	2	0.079 in	2 mm	Push-Pull	Solder	Board to Board Cable	All	Black	0.138 in	3.5 mm	UL94 V-0	2	Nylon Polyamide (PA)			Square	85 °C	-55 °C	0.102 in	2.6 mm	Header	Male Pin	0.9 mm	0.035 in	Unshrouded	Flash	0.203 Ám	8 Áin	Gold	200 V	5.1 mm 7.9 mm
