UPD70F3385M2GMA2-GAR-AX

Active

Renesas Electronics Corporation

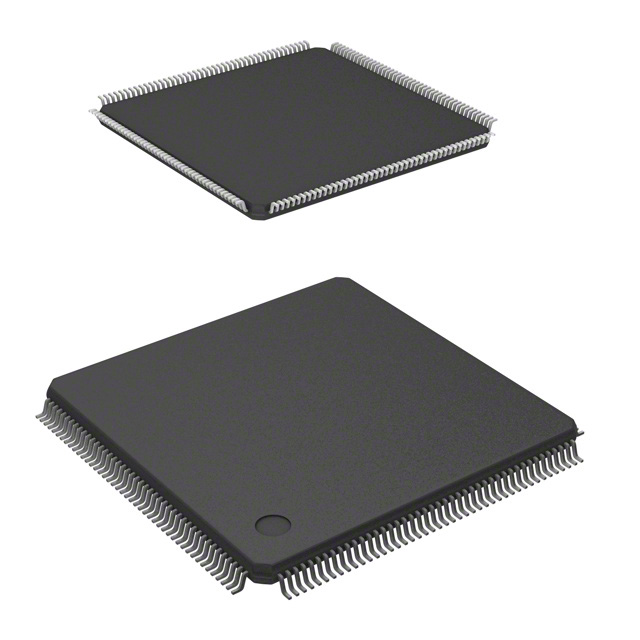

MCU 32-BIT V850ES/FX3 V850ES RISC 1024KB FLASH 5V 176-PIN LFQFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet V850ES/FE3 Datasheet

UPD70F3385M2GMA2-GAR-AX

Active

Renesas Electronics Corporation

MCU 32-BIT V850ES/FX3 V850ES RISC 1024KB FLASH 5V 176-PIN LFQFP

Deep-Dive with AI

DocumentsDatasheet V850ES/FE3 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UPD70F3385M2GMA2-GAR-AX

Connectivity	EBI/EMI, CANbus, UART/USART, LINbus, I2C, CSI
Core Processor	V850ES
Core Size	32-Bit
Data Converters	A/D 40x10b SAR
EEPROM Size	32 K
Mounting Type	Surface Mount
Number of I/O	152
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	176-LQFP
Peripherals	DMA, LVD, PWM, POR, WDT
Program Memory Size	1 MB
Program Memory Type	FLASH
RAM Size	60 K
Speed	32 MHz
Supplier Device Package	176-LFQFP (24x24)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	3.3 V

V850ES/Fx3 Series

32-bit Microcontrollers (Non Promotion)

Part	Data Converters	Speed	RAM Size	Mounting Type	Supplier Device Package	Core Size	Operating Temperature [Max]	Operating Temperature [Min]	Peripherals	Program Memory Size	Connectivity	Core Processor	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Number of I/O	Program Memory Type	Oscillator Type	EEPROM Size	Package / Case	Data Converters
Renesas Electronics Corporation UPD70F3378M1GJA-GAE-AX	10 b 24	32 MHz	16 K	Surface Mount	144-LQFP (20x20)	32-Bit Single-Core	85 °C	-40 °C	DMA LVD POR PWM WDT	256 KB	CANbus CSI EBI/EMI I2C LINbus UART/USART	V850ES	3.3 V	5.5 V	128	FLASH	Internal	32 K	144-LQFP
Renesas Electronics Corporation UPD70F3380M2GJA1-GAE-AX	10 24	48 MHz		Surface Mount	144-LQFP (20x20)	32-Bit	110 °C	-40 °C	DMA LVD POR PWM WDT	512 KB	CANbus CSI EBI/EMI I2C LINbus UART/USART	V850ES	3.3 V	5.5 V	128	FLASH	External Internal	32 K	144-LQFP	SAR
Renesas Electronics Corporation UPD70F3376AM2GCA-UEU-AX	10 b 16	48 MHz	24 K	Surface Mount	100-LFQFP (14x14)	32-Bit	85 °C	-40 °C	DMA LVD POR PWM WDT	384 KB	CANbus CSI EBI/EMI I2C LINbus UART/USART	V850ES	3.3 V	5.5 V	84 I/O	FLASH	Internal	32 K	100-LQFP	A/D SAR
Renesas Electronics Corporation UPD70F3376AM2GCA2-UEU-AX	10 b 16	32 MHz	24 K	Surface Mount	100-LFQFP (14x14)	32-Bit	125 °C	-40 °C	DMA LVD POR PWM WDT	384 KB	CANbus CSI EBI/EMI I2C LINbus UART/USART	V850ES	3.3 V	5.5 V	84 I/O	FLASH	Internal	32 K	100-LQFP	A/D SAR
Renesas Electronics Corporation UPD70F3380ZM2GJA-GAE-AX	10 24	48 MHz		Surface Mount	144-LQFP (20x20)	32-Bit	85 °C	-40 °C	DMA LVD POR PWM WDT	512 KB	CANbus CSI EBI/EMI I2C LINbus UART/USART	V850ES	3.3 V	5.5 V	128	FLASH	External Internal	32 K	144-LQFP	SAR
Renesas Electronics Corporation UPD70F3378M1GJA2-GAE-AX	10 b 24	32 MHz	16 K	Surface Mount	144-LQFP (20x20)	32-Bit Single-Core	125 °C	-40 °C	DMA LVD POR PWM WDT	256 KB	CANbus CSI EBI/EMI I2C LINbus UART/USART	V850ES	3.3 V	5.5 V	128	FLASH	Internal	32 K	144-LQFP
Renesas Electronics Corporation UPD70F3371M2GBA-GAH-QS-AX		32 MHz	16 K	Surface Mount	64-LFQFP (10x10)	32-Bit	85 °C	-40 °C	DMA LVD POR PWM WDT	256 KB	CANbus CSI EBI/EMI I2C LINbus UART/USART	V850ES	3.3 V	5.5 V	51	FLASH	Internal	32 K	64-LQFP	A/D 10x10b SAR
Renesas Electronics Corporation UPD70F3375M2GCA1-UEU-QS-AX	10 b 16	32 MHz	16 K	Surface Mount	100-LFQFP (14x14)	32-Bit	110 °C	-40 °C	DMA LVD POR PWM WDT	256 KB	CANbus CSI EBI/EMI I2C LINbus UART/USART	V850ES	3.3 V	5.5 V	84 I/O	FLASH	Internal	32 K	100-LQFP	A/D SAR
Renesas Electronics Corporation UPD70F3380M2GJA2-GAE-AX	10 24	48 MHz		Surface Mount	144-LQFP (20x20)	32-Bit	125 °C	-40 °C	DMA LVD POR PWM WDT	512 KB	CANbus CSI EBI/EMI I2C LINbus UART/USART	V850ES	3.3 V	5.5 V	128	FLASH	External Internal	32 K	144-LQFP	SAR
Renesas Electronics Corporation UPD70F3385M2GMA2-GAR-AX		32 MHz	60 K	Surface Mount	176-LFQFP (24x24)	32-Bit	125 °C	-40 °C	DMA LVD POR PWM WDT	1 MB	CANbus CSI EBI/EMI I2C LINbus UART/USART	V850ES	3.3 V	5.5 V	152	FLASH	Internal	32 K	176-LQFP	A/D 40x10b SAR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	80	$ 34.20

Description

General part information

V850ES/Fx3 Series

The V850ES/Fx3 is supported only for customers who have already adopted these products. The RH850/F1L or RH850/F1H Group is recommended for new designs.
