UCLAMP3301H.THT

Active

Semtech Corporation

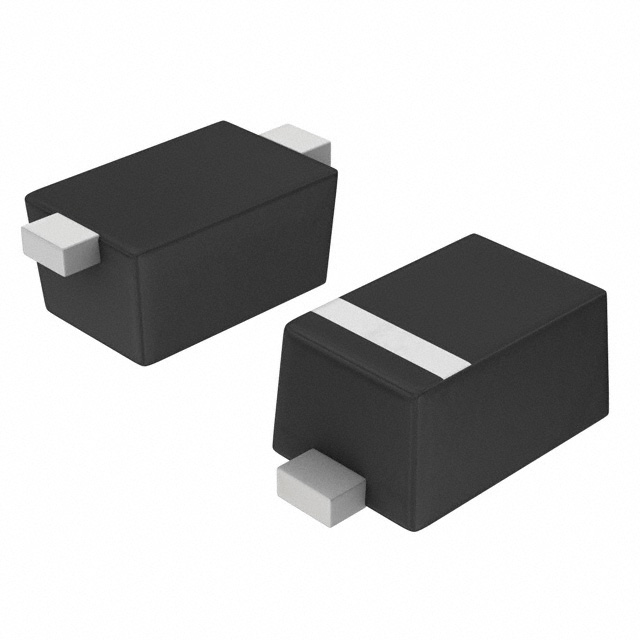

UCLAMP 1-LINE 3.3V ESD PROTECT SOD-523

Search across all available documentation for this part.

Active

Semtech Corporation

UCLAMP 1-LINE 3.3V ESD PROTECT SOD-523

Technical Specifications

Parameters and characteristics for this part

Specification	UCLAMP3301H.THT

Applications	General Purpose
Capacitance @ Frequency	25 pF
Current - Peak Pulse (10/1000µs)	5 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	SC-79, SOD-523
Power - Peak Pulse	40 W
Power Line Protection	False
Supplier Device Package	SOD-523
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	3.5 V
Voltage - Clamping (Max) @ Ipp [Max]	8 V
Voltage - Reverse Standoff (Typ)	3.3 V

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Power - Peak Pulse	Voltage - Breakdown (Min) [Min]	Applications	Voltage - Reverse Standoff (Typ)	Package / Case	Current - Peak Pulse (10/1000µs)	Capacitance @ Frequency	Unidirectional Channels [custom]	Type	Voltage - Clamping (Max) @ Ipp [Max]
Semtech Corporation UCLAMP3301H.TCT	SOD-523	125 ¯C	-55 °C	Surface Mount	40 W	3.5 V	General Purpose	3.3 V	SC-79 SOD-523	5 A	25 pF	1	Zener	8 V
Semtech Corporation UCLAMP3301D.TCT	SOD-323	125 ¯C	-55 °C	Surface Mount	100 W	3.5 V	General Purpose	3.3 V	SC-76 SOD-323	10 A	50 pF	1	Zener	9.5 V
Semtech Corporation UCLAMP3301H.THT	SOD-523	125 ¯C	-55 °C	Surface Mount	40 W	3.5 V	General Purpose	3.3 V	SC-79 SOD-523	5 A	25 pF	1	Zener	8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
