DB25-PT-1-BL
ActiveAdam Tech

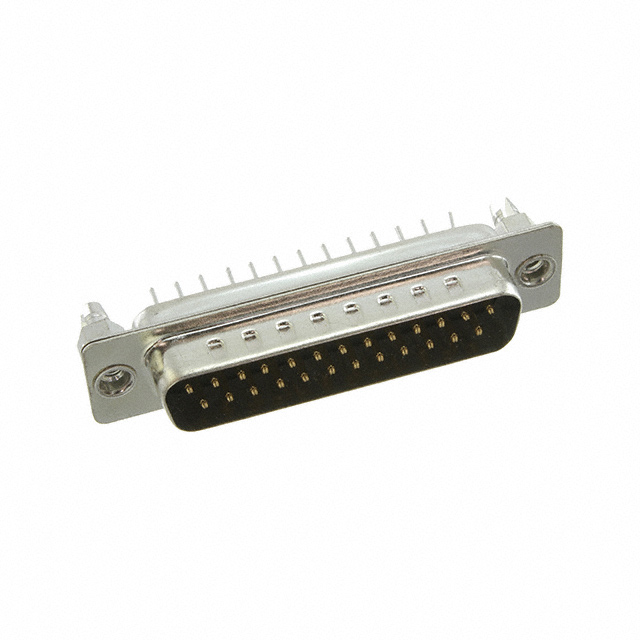

CONN D-SUB PLUG 25POS VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DB25-PT-1-BL
ActiveAdam Tech
CONN D-SUB PLUG 25POS VERT SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DB25-PT-1-BL |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents, Board Lock |
| Flange Feature | Board Side, 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Rows | 2 |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
| Voltage Rating | 250 VAC |
DB25 Series
| Part | Number of Rows | Dielectric Material | Contact Finish | Features | Contact Finish Thickness | Current Rating (Amps) | Termination | Contact Material | Connector Style | Mounting Type | Material Flammability Rating | Connector Type | Color | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Voltage Rating | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Backset Spacing | Backset Spacing | Shell Material, Finish | Shielding | Cable Exit | Cable Type | Accessory Type | Material | Compatible Shell Size | Compatible D-Sub Size | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | 2 | Polybutylene Terephthalate (PBT) Glass Filled | Gold | Board Lock Grounding Indents | Flash | 3 A | Solder | Copper Alloy | D-Sub | Through Hole | UL94 V-0 | Male Pins Plug | Black | B DB | 3 | 250 VAC | 4-40 Board Side | ||||||||||||||
Adam Tech | 2 | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 3 A | Solder | Copper Alloy | D-Sub | Through Hole Right Angle | UL94 V-0 | Receptacle Female Sockets | Black | B DB | 3 | 250 VAC | Housing/Shell (4-40) | 85 °C | -20 C | Stamped | 0.319 in | 8.1 mm | |||||||||||
Adam Tech | 2 | Polybutylene Terephthalate (PBT) Glass Filled | Gold | Flash | 3 A | Copper Alloy | D-Sub | Free Hanging (In-Line) | UL94 V-0 | Receptacle Female Sockets | Black | B DB | 3 | 250 VAC | Cable Side | 105 ░C | -55 °C | Stamped | |||||||||||||
Adam Tech | 2 | Thermoplastic Glass Filled | Gold | 5 A | Solder | Phosphor Bronze | D-Sub | Surface Mount Right Angle | UL94 V-0 | Receptacle Female Sockets | Black | B DB | 3 | 300 VAC | Housing/Shell (4-40) | 105 ░C | -55 °C | Nickel Plated Steel | |||||||||||||
Adam Tech | Mating Screws 4-40 | Black | Unshielded | 180 ° | Round | Two Piece Backshell | Acrylonitrile Butadiene Styrene (ABS) | B | 25pos HD44pos | Plastic | |||||||||||||||||||||
Adam Tech | 2 | Polybutylene Terephthalate (PBT) Glass Filled | Gold | Grounding Indents | Flash | 3 A | Copper Alloy | D-Sub | Free Hanging (In-Line) | UL94 V-0 | Male Pins Plug | Black | B DB | 3 | 250 VAC | Cable Side | 105 ░C | -55 °C | Stamped | ||||||||||||
Adam Tech | 2 | Polybutylene Terephthalate (PBT) Glass Filled | Gold | Grounding Indents | Flash | 5 A | Solder | Phosphor Bronze | D-Sub | Through Hole | UL94 V-0 | Male Pins Plug | Black | B DB | 3 | 250 VDC | Housing/Shell (4-40) | 125 °C | -65 ░C | ||||||||||||
Adam Tech | 2 | Polybutylene Terephthalate (PBT) Glass Filled | Gold | Flash | 3 A | Solder | Brass | D-Sub | Through Hole | UL94 V-0 | Receptacle Female Sockets | Black | B DB | 3 | 250 VAC | Board Side (4-40) Mating Side Female Screwlock (4-40) | 85 °C | -55 °C | |||||||||||||
Adam Tech | 2 | Polybutylene Terephthalate (PBT) Glass Filled | Gold | Flash | 5 A | Solder | Phosphor Bronze | D-Sub | Through Hole | UL94 V-0 | Receptacle Female Sockets | Black | B DB | 3 | 250 VAC | 4-40 Board Side | 125 °C | -65 ░C | |||||||||||||
Adam Tech | 2 | Polybutylene Terephthalate (PBT) Glass Filled | Gold | 3 A | Solder | Copper Alloy | D-Sub | Through Hole Right Angle | UL94 V-0 | Receptacle Female Sockets | Black | B DB | 3 | 250 VAC | Female Screwlock (4-40) Mating Side | 105 ░C | -55 °C | Stamped | 0.319 in | 8.1 mm |
