DB25-ST-1-BL-JS

Active

Adam Tech

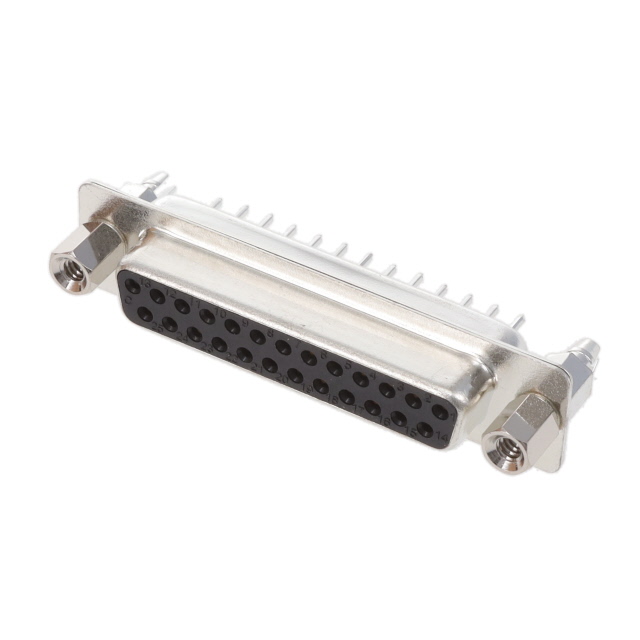

CONN D-SUB RCPT 25POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

DB25-ST-1-BL-JS

Active

Adam Tech

CONN D-SUB RCPT 25POS VERT SLDR

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DB25-ST-1-BL-JS

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Board Side (4-40), Mating Side, Female Screwlock (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	250 VAC

DB25 Series

Part	Number of Rows	Dielectric Material	Contact Finish	Features	Contact Finish Thickness	Current Rating (Amps)	Termination	Contact Material	Connector Style	Mounting Type	Material Flammability Rating	Connector Type	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Backset Spacing	Backset Spacing	Shell Material, Finish	Shielding	Cable Exit	Cable Type	Accessory Type	Material	Compatible Shell Size	Compatible D-Sub Size	Primary Material
Adam Tech DB25-PT-1-BL	2	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Board Lock Grounding Indents	Flash	3 A	Solder	Copper Alloy	D-Sub	Through Hole	UL94 V-0	Male Pins Plug	Black	B DB	3	250 VAC	4-40 Board Side
Adam Tech DB25-SL-24	2	Polybutylene Terephthalate (PBT) Glass Filled	Gold			3 A	Solder	Copper Alloy	D-Sub	Through Hole Right Angle	UL94 V-0	Receptacle Female Sockets	Black	B DB	3	250 VAC	Housing/Shell (4-40)	85 °C	-20 C	Stamped	0.319 in	8.1 mm
Adam Tech DB25-SD-SL	2	Polybutylene Terephthalate (PBT) Glass Filled	Gold		Flash	3 A		Copper Alloy	D-Sub	Free Hanging (In-Line)	UL94 V-0	Receptacle Female Sockets	Black	B DB	3	250 VAC	Cable Side	105 ░C	-55 °C	Stamped
Adam Tech DB25-SS-24	2	Thermoplastic Glass Filled	Gold			5 A	Solder	Phosphor Bronze	D-Sub	Surface Mount Right Angle	UL94 V-0	Receptacle Female Sockets	Black	B DB	3	300 VAC	Housing/Shell (4-40)	105 ░C	-55 °C				Nickel Plated Steel
Adam Tech DB25-HD-PB-SS				Mating Screws 4-40									Black											Unshielded	180 °	Round	Two Piece Backshell	Acrylonitrile Butadiene Styrene (ABS)	B	25pos HD44pos	Plastic
Adam Tech DB25-PD-SL	2	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Grounding Indents	Flash	3 A		Copper Alloy	D-Sub	Free Hanging (In-Line)	UL94 V-0	Male Pins Plug	Black	B DB	3	250 VAC	Cable Side	105 ░C	-55 °C	Stamped
Adam Tech DB25-PA-M2	2	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Grounding Indents	Flash	5 A	Solder	Phosphor Bronze	D-Sub	Through Hole	UL94 V-0	Male Pins Plug	Black	B DB	3	250 VDC	Housing/Shell (4-40)	125 °C	-65 ░C
Adam Tech DB25-ST-1-BL-JS	2	Polybutylene Terephthalate (PBT) Glass Filled	Gold		Flash	3 A	Solder	Brass	D-Sub	Through Hole	UL94 V-0	Receptacle Female Sockets	Black	B DB	3	250 VAC	Board Side (4-40) Mating Side Female Screwlock (4-40)	85 °C	-55 °C
Adam Tech DB25-ST-1-SL	2	Polybutylene Terephthalate (PBT) Glass Filled	Gold		Flash	5 A	Solder	Phosphor Bronze	D-Sub	Through Hole	UL94 V-0	Receptacle Female Sockets	Black	B DB	3	250 VAC	4-40 Board Side	125 °C	-65 ░C
Adam Tech DB25-SL-25	2	Polybutylene Terephthalate (PBT) Glass Filled	Gold			3 A	Solder	Copper Alloy	D-Sub	Through Hole Right Angle	UL94 V-0	Receptacle Female Sockets	Black	B DB	3	250 VAC	Female Screwlock (4-40) Mating Side	105 ░C	-55 °C	Stamped	0.319 in	8.1 mm
