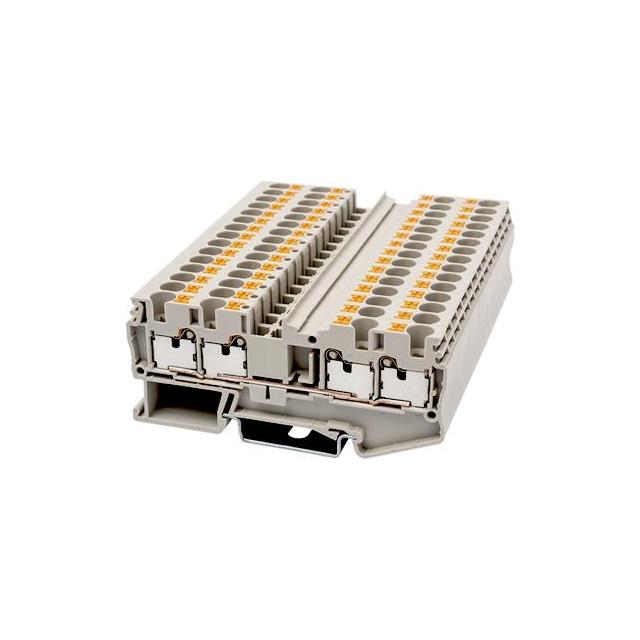

DP4-TR

Active

Dinkle Corporation, USA

PUSH IN TERM BLK FEED THROUGH 24

Search across all available documentation for this part.

Active

Dinkle Corporation, USA

PUSH IN TERM BLK FEED THROUGH 24

Technical Specifications

Parameters and characteristics for this part

Specification	DP4-TR

Color	Gray
Current - IEC	32 A
Current - UL	30 A
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Levels	1
Number of Positions	4
Stripping Length [x]	12 mm
Terminal - Width [y]	6.1 mm
Termination Style	Push In
Type	Feed Through
Voltage - IEC	800 V
Voltage - UL	600 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	10 AWG
Wire Gauge or Range - mm² [Max]	4 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²

Part	Number of Levels	Current - IEC	Stripping Length [x]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Style	Terminal - Width [y]	Material - Insulation	Color	Voltage - UL	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Type	Voltage - IEC	Material Flammability Rating	Number of Positions	Current - UL	Voltage - UL [custom]	Fuse Type [y]	Fuse Type [x]	Disconnect Type
Dinkle Corporation, USA DP4-TR	1	32 A	12 mm	10 AWG	24 AWG	Push In	6.1 mm	Nylon Polyamide (PA)	Gray	600 V	0.2 mm²	4 mm²	Feed Through	800 V	UL94 V-0	4	30 A
Dinkle Corporation, USA DP4-TFU(5X20)	1	10 A	12 mm	10 AWG	24 AWG	Push In	6.1 mm	Nylon Polyamide (PA)	Gray		0.2 mm²	6 mm²	Disconnect	400 V	UL94 V-0	2	12 A	300 V	20 mm	5 mm	Fuse Removable Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 4 Position Feed Through Gray 10-24 AWG
