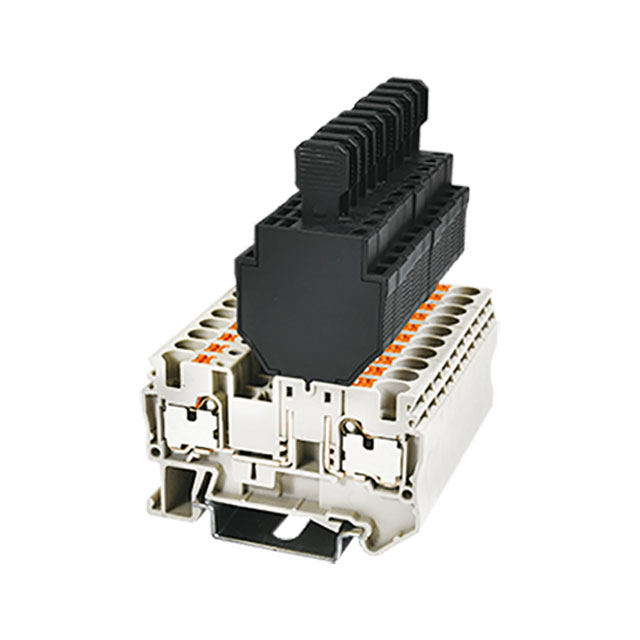

DP4-TFU(5X20)

Active

Dinkle Corporation, USA

PUSH IN TERM BLK DISCONNECT 24~1

Search across all available documentation for this part.

Active

Dinkle Corporation, USA

PUSH IN TERM BLK DISCONNECT 24~1

Technical Specifications

Parameters and characteristics for this part

Specification	DP4-TFU(5X20)

Color	Gray
Current - IEC	10 A
Current - UL	12 A
Disconnect Type	Removable Plug, Fuse
Fuse Type [x]	5 mm
Fuse Type [y]	20 mm
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Levels	1
Number of Positions	2
Stripping Length [x]	12 mm
Terminal - Width [y]	6.1 mm
Termination Style	Push In
Type	Disconnect
Voltage - IEC	400 V
Voltage - UL [custom]	300 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	10 AWG
Wire Gauge or Range - mm² [Max]	6 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²

Part	Number of Levels	Current - IEC	Stripping Length [x]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Style	Terminal - Width [y]	Material - Insulation	Color	Voltage - UL	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Type	Voltage - IEC	Material Flammability Rating	Number of Positions	Current - UL	Voltage - UL [custom]	Fuse Type [y]	Fuse Type [x]	Disconnect Type
Dinkle Corporation, USA DP4-TR	1	32 A	12 mm	10 AWG	24 AWG	Push In	6.1 mm	Nylon Polyamide (PA)	Gray	600 V	0.2 mm²	4 mm²	Feed Through	800 V	UL94 V-0	4	30 A
Dinkle Corporation, USA DP4-TFU(5X20)	1	10 A	12 mm	10 AWG	24 AWG	Push In	6.1 mm	Nylon Polyamide (PA)	Gray		0.2 mm²	6 mm²	Disconnect	400 V	UL94 V-0	2	12 A	300 V	20 mm	5 mm	Fuse Removable Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 2 Position Disconnect Gray 10-24 AWG
