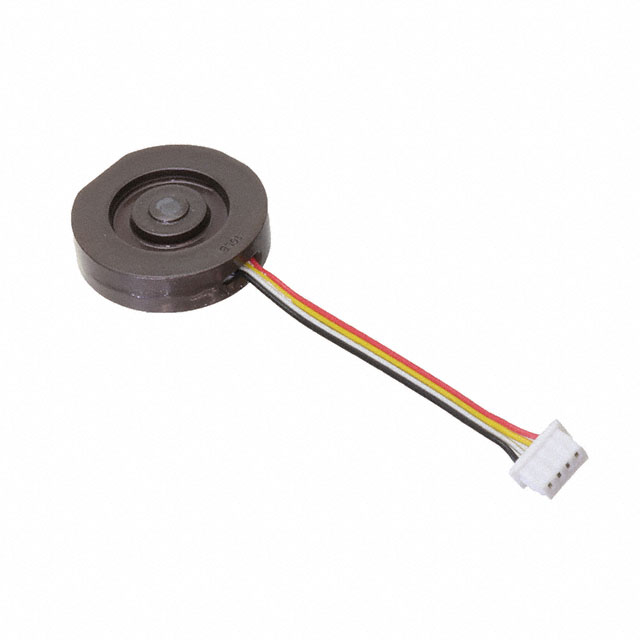

FX29K0-040B-0050-L
ActiveTE Connectivity Measurement Specialties
FORCE SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FX29K0-040B-0050-L
ActiveTE Connectivity Measurement Specialties
FORCE SENSOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FX29K0-040B-0050-L |
|---|---|
| Accuracy | 1 % |
| Actuator Type | Pushbutton |
| Compensated Temperature [Max] | 50 °C |
| Compensated Temperature [Min] | 0 °C |
| Includes | Sensor |
| Operating Force | 55 lbs |
| Operating Force | 25 kgf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Output | Digital |
| Sensor Type | Load Cell |
| Voltage - Supply | 5.5 V |
FX29K0 Series
| Part | Actuator Type | Sensor Type | Operating Temperature [Min] | Operating Temperature [Max] | Output | Includes | Compensated Temperature [Min] | Compensated Temperature [Max] | Operating Force | Operating Force | Voltage - Supply | Accuracy |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Measurement Specialties | Pushbutton | Load Cell | 0 °C | 85 °C | Digital | Sensor | 0 °C | 50 °C | 50 kgf | 110 lbs | 5.5 V | 1 % |
TE Connectivity Measurement Specialties | Pushbutton | Load Cell | 0 °C | 85 °C | Digital | Sensor | 0 °C | 50 °C | 25 kgf | 55 lbs | 5.5 V | 1 % |
TE Connectivity Measurement Specialties | Pushbutton | Load Cell | 0 °C | 85 °C | Digital | Sensor | 0 °C | 50 °C | 5 kgf | 11 lbs | 5.5 V | 1 % |
TE Connectivity Measurement Specialties | Pushbutton | Load Cell | 0 °C | 85 °C | Digital | Sensor | 0 °C | 50 °C | 50 kgf | 110 lbs | 5.5 V | 1 % |
TE Connectivity Measurement Specialties | Pushbutton | Load Cell | 0 °C | 85 °C | Digital | Sensor | 0 °C | 50 °C | 25 kgf | 55 lbs | 5.5 V | 1 % |
TE Connectivity Measurement Specialties | Pushbutton | Load Cell | 0 °C | 85 °C | Digital | Sensor | 0 °C | 50 °C | 5 kgf | 11 lbs | 5.5 V | 1 % |
TE Connectivity Measurement Specialties | Pushbutton | Load Cell | 0 °C | 85 °C | Digital | Sensor | 0 °C | 50 °C | 5.5 V | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 53.04 | |
| 10 | $ 49.15 | |||
Description
General part information
FX29K0 Series
FORCE SENSOR
