FX29K0-100A-0050-L

Active

TE Connectivity Measurement Specialties

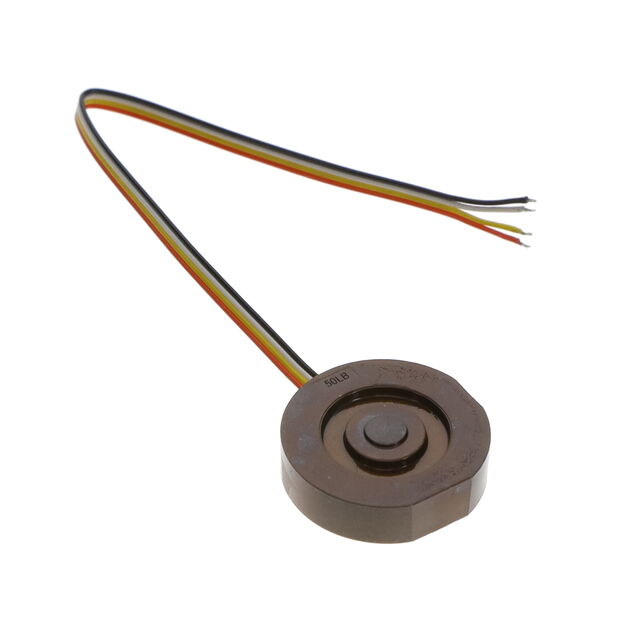

50LBF COMPRESSION LOAD CELL, I2C

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

50LBF COMPRESSION LOAD CELL, I2C

Technical Specifications

Parameters and characteristics for this part

Specification	FX29K0-100A-0050-L

Accuracy	1 %
Actuator Type	Pushbutton
Compensated Temperature [Max]	50 °C
Compensated Temperature [Min]	0 °C
Includes	Sensor
Operating Force	55 lbs
Operating Force	25 kgf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Output	Digital
Sensor Type	Load Cell
Voltage - Supply	5.5 V

Part	Actuator Type	Sensor Type	Operating Temperature [Max]	Output	Includes	Compensated Temperature [Max]	Operating Force	Operating Force	Voltage - Supply	Accuracy
TE Connectivity Measurement Specialties FX29K0-040B-0100-L	Pushbutton	Load Cell	85 °C	Digital	Sensor	50 °C	50 kgf	110 lbs	5.5 V	1 %
TE Connectivity Measurement Specialties FX29K0-100A-0050-L	Pushbutton	Load Cell	85 °C	Digital	Sensor	50 °C	25 kgf	55 lbs	5.5 V	1 %
TE Connectivity Measurement Specialties FX29K0-040B-0010-L	Pushbutton	Load Cell	85 °C	Digital	Sensor	50 °C	5 kgf	11 lbs	5.5 V	1 %
TE Connectivity Measurement Specialties FX29K0-100A-0100-L	Pushbutton	Load Cell	85 °C	Digital	Sensor	50 °C	50 kgf	110 lbs	5.5 V	1 %
TE Connectivity Measurement Specialties FX29K0-040B-0050-L	Pushbutton	Load Cell	85 °C	Digital	Sensor	50 °C	25 kgf	55 lbs	5.5 V	1 %
TE Connectivity Measurement Specialties FX29K0-100A-0010-L	Pushbutton	Load Cell	85 °C	Digital	Sensor	50 °C	5 kgf	11 lbs	5.5 V	1 %
TE Connectivity Measurement Specialties FX29K0-100A-0025-L	Pushbutton	Load Cell	85 °C	Digital	Sensor	50 °C			5.5 V	1 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50LBF COMPRESSION LOAD CELL, I2C

Technical documentation and resources

No documents available
