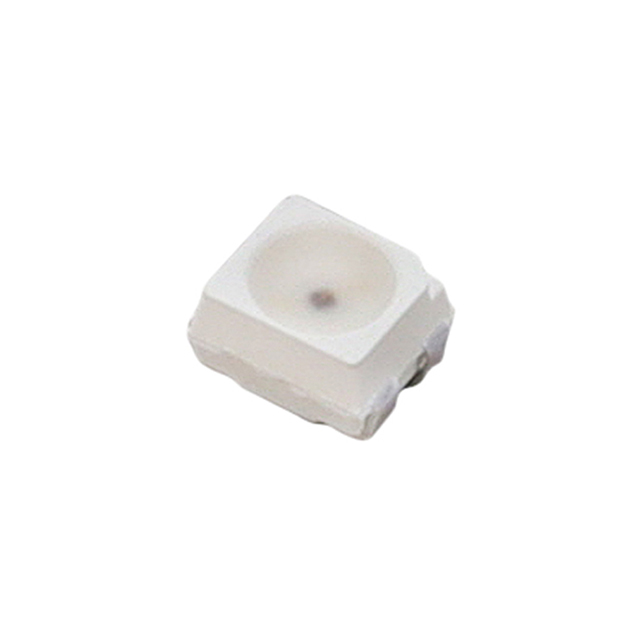

AREQ-9020-MP000
ActiveBroadcom Limited
3528 PLCC-4 SURFACE MOUNT INFRAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AREQ-9020-MP000
ActiveBroadcom Limited
3528 PLCC-4 SURFACE MOUNT INFRAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AREQ-9020-MP000 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 100 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 4-PLCC |
| Radiant Intensity (Ie) Min @ If [Min] | 18 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.1 V |
| Wavelength | 940 nm |
AREQ Series
| Part | Orientation | Wavelength | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Forward (Vf) (Typ) | Radiant Intensity (Ie) Min @ If | Package / Case | Current - DC Forward (If) (Max) [Max] | Type | Viewing Angle | Radiant Intensity (Ie) Min @ If [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Broadcom Limited | Top View | 940 nm | 100 °C | -40 °C | Surface Mount | 3.1 V | 112.5 mW/sr | 4-PLCC | 100 mA | Infrared (IR) | 30 ° | |
Broadcom Limited | ||||||||||||
Broadcom Limited | ||||||||||||
Broadcom Limited | Top View | 940 nm | 100 °C | -40 °C | Surface Mount | 1.6 V | 4-PLCC | 100 mA | Infrared (IR) | 30 ° | 71.5 mW/sr | |
Broadcom Limited | Top View | 850 nm | 100 °C | -40 °C | Surface Mount | 1.6 V | 4-PLCC | 100 mA | Infrared (IR) | 50 ° | 28.5 mW/sr | |
Broadcom Limited | Top View | 850 nm | 100 °C | -40 °C | Surface Mount | 1.6 V | 4-PLCC | 100 mA | Infrared (IR) | 120 ° | 11.2 mW/sr | |
Broadcom Limited | Top View | 850 nm | 100 °C | -40 °C | Surface Mount | 1.6 V | 4-PLCC | 100 mA | Infrared (IR) | 120 ° | 11.2 mW/sr | |
Broadcom Limited | Top View | 940 nm | 100 °C | -40 °C | Surface Mount | 3.1 V | 4-PLCC | 100 mA | Infrared (IR) | 120 ° | 18 mW/sr | |
Broadcom Limited | Top View | 940 nm | 100 °C | -40 °C | Surface Mount | 3.1 V | 100 mA | 4-PLCC | 100 mA | Infrared (IR) | 50 ° | 45 mW/sr |
Broadcom Limited | Top View | 940 nm | 100 °C | -40 °C | Surface Mount | 1.6 V | 4-PLCC | 100 mA | Infrared (IR) | 120 ° | 11.2 mW/sr |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.04 | |
| 10 | $ 0.66 | |||
| 100 | $ 0.46 | |||
| 500 | $ 0.41 | |||
| Digi-Reel® | 1 | $ 1.04 | ||
| 10 | $ 0.66 | |||
| 100 | $ 0.46 | |||
| 500 | $ 0.41 | |||
| Tape & Reel (TR) | 2000 | $ 0.48 | ||
| 4000 | $ 0.46 | |||
| 6000 | $ 0.44 | |||
| 10000 | $ 0.43 | |||
| 14000 | $ 0.42 | |||
| 20000 | $ 0.42 | |||
Description
General part information
AREQ Series
Infrared (IR) Emitter 940nm 3.1V 100mA 18mW/sr @ 100mA 120° 4-PLCC
