AREQ-93C0-QR000
ActiveBroadcom Limited

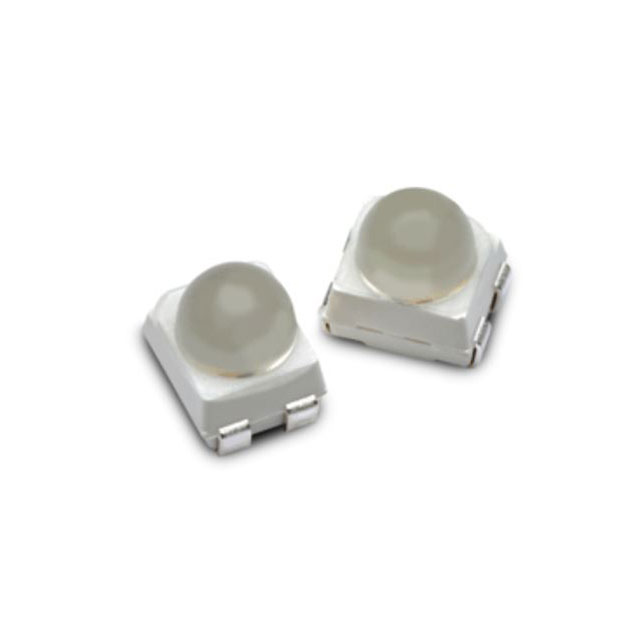

3528 PLCC-4 LENS INFRARED LED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AREQ-93C0-QR000
ActiveBroadcom Limited
3528 PLCC-4 LENS INFRARED LED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AREQ-93C0-QR000 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 100 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 4-PLCC |
| Radiant Intensity (Ie) Min @ If [Min] | 71.5 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 1.6 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.42 | |
| 10 | $ 0.89 | |||
| 100 | $ 0.62 | |||
| 500 | $ 0.51 | |||
| 1000 | $ 0.48 | |||
| Digi-Reel® | 1 | $ 1.42 | ||
| 10 | $ 0.89 | |||
| 100 | $ 0.62 | |||
| 500 | $ 0.51 | |||
| 1000 | $ 0.48 | |||
| Tape & Reel (TR) | 2000 | $ 0.45 | ||
| 4000 | $ 0.43 | |||
| 6000 | $ 0.42 | |||
| 10000 | $ 0.41 | |||
| 14000 | $ 0.40 | |||
| 20000 | $ 0.39 | |||
Description
General part information
AREQ Series
Infrared (IR) Emitter 940nm 1.6V 100mA 71.5mW/sr @ 100mA 30° 4-PLCC
