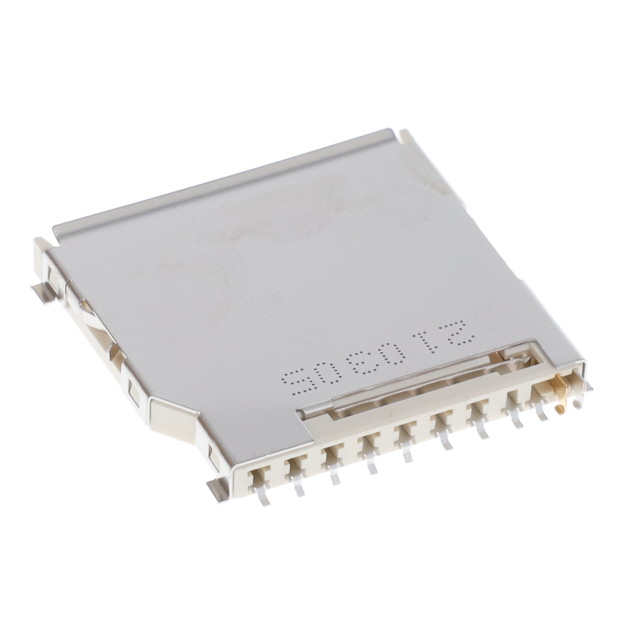

GSD090012SEU
ActiveAmphenol ICC (Commercial Products)
GSD090012SEU-SD CARD CONN,9 POS,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSD090012SEU
ActiveAmphenol ICC (Commercial Products)
GSD090012SEU-SD CARD CONN,9 POS,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GSD090012SEU |
|---|---|
| Card Type | Secure Digital - SD |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Features | Switch, Board Guide |
| Height Above Board [z] | 0.116 in |
| Height Above Board [z] | 2.95 mm |
| Insertion, Removal Method | Push Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 11 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.23 | |
| 10 | $ 1.04 | |||
| 25 | $ 1.00 | |||
| 50 | $ 0.97 | |||
| 100 | $ 0.93 | |||
| Digi-Reel® | 1 | $ 1.23 | ||
| 10 | $ 1.04 | |||
| 25 | $ 1.00 | |||
| 50 | $ 0.97 | |||
| 100 | $ 0.93 | |||
| Tape & Reel (TR) | 350 | $ 0.85 | ||
| 700 | $ 0.76 | |||
| 1050 | $ 0.68 | |||
| 1750 | $ 0.64 | |||
| 2450 | $ 0.61 | |||
| 8750 | $ 0.56 | |||
| 17500 | $ 0.55 | |||
Description
General part information
GSD0900 Series
11 (9 + 2) Position Card Connector Secure Digital - SD Surface Mount, Right Angle Gold
