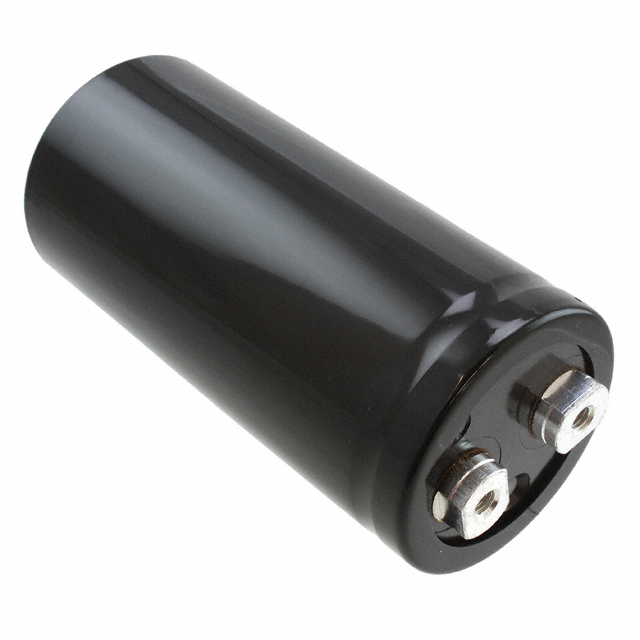

ALS40A103KF100

Active

KEMET

CAP ALUM 10000UF 20% 100V SCREW

Deep-Dive with AI

DocumentsKEM_A4036_ALS40_41.pdf ALS40A103KF100 Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALS40A103KF100

Applications	General Purpose
Capacitance	10000 µF
ESR (Equivalent Series Resistance)	21 mOhm
Height - Seated (Max) [Max]	107 mm
Height - Seated (Max) [Max]	4.213 in
Impedance	18 mOhms
Lead Spacing	0.874 in
Lead Spacing	22.2 mm
Lifetime @ Temp.	7000 Hrs
Mounting Type	Chassis Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Screw Terminals
Polarization	Polar
Ripple Current @ High Frequency	11.5 A
Ripple Current @ Low Frequency	10.9 A
Size / Dimension [diameter]	51 mm
Size / Dimension [diameter]	2.008 "
Tolerance	20 %
Voltage - Rated	100 V

ALS40A Series

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	ESR (Equivalent Series Resistance)	Mounting Type	Applications	Ripple Current @ Low Frequency	Polarization	Lifetime @ Temp.	Tolerance	Package / Case	Impedance	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET ALS40A472DB063	2.52 in	64 mm	63 V	27 mOhm	Chassis Mount	General Purpose	6.7 A	Polar	6000 Hrs	20 %	Radial Can - Screw Terminals	22 mOhms	0.504 in	12.8 mm	7.5 A	1.417 in	36 mm	4700 µF	-40 °C	105 ░C
KEMET ALS40A473DF025			25 VDC	9 mOhm	Chassis Mount	General Purpose	14 A	Polar	6000 Hrs	20 %	Radial Can - Screw Terminals	8 mOhms	0.504 in	12.8 mm	14.7 A	1.417 in	36 mm	47 mF	-40 °C	105 ░C	4.134 "	105 mm
KEMET ALS40A103KF100	4.213 in	107 mm	100 V	21 mOhm	Chassis Mount	General Purpose	10.9 A	Polar	7000 Hrs	20 %	Radial Can - Screw Terminals	18 mOhms	0.874 in	22.2 mm	11.5 A	2.008 "	51 mm	10000 µF	-40 °C	105 ░C
KEMET ALS40A472DF100			100 V	26 mOhm	Chassis Mount	General Purpose	8.1 A	Polar	6000 Hrs	20 %	Radial Can - Screw Terminals	21 mOhms	0.504 in	12.8 mm	9.3 A	1.417 in	36 mm	4700 µF	-40 °C	105 ░C	4.134 "	105 mm
KEMET ALS40A221DE450			450 V	487 mOhm	Chassis Mount	General Purpose	2.5 A	Polar	6000 Hrs	20 %	Radial Can - Screw Terminals	242 mOhms	0.504 in	12.8 mm	6.2 A	1.417 in	36 mm	220 µF	-40 °C	105 ░C	3.228 in	82 mm
KEMET ALS40A104KF025	4.213 in	107 mm	25 VDC	9 mOhm	Chassis Mount	General Purpose	16.4 A	Polar	7000 Hrs	20 %	Radial Can - Screw Terminals	8 mOhms	0.874 in	22.2 mm	16.7 A	2.008 "	51 mm	100000 µF	-40 °C	105 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.79
		24	$ 32.04
		120	$ 25.27

Description

General part information

ALS40A Series

10000 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 21mOhm @ 100Hz 7000 Hrs @ 105°C

Documents

Technical documentation and resources

KEM_A4036_ALS40_41.pdf

Datasheet

ALS40A103KF100 Spec

Datasheet
