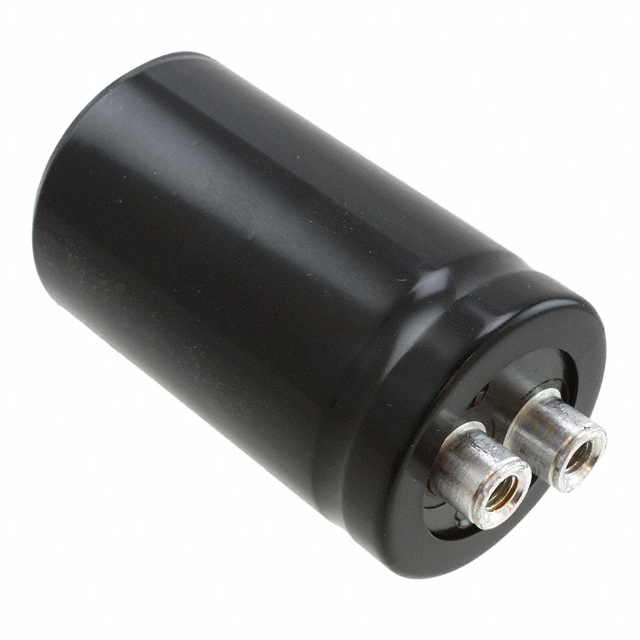

ALS40A472DB063

Active

KEMET

CAP ALUM 4700UF 20% 63V SCREW CH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_A4036_ALS40_41.pdf ALS40A472DB063 Spec +1

ALS40A472DB063

Active

KEMET

CAP ALUM 4700UF 20% 63V SCREW CH

Deep-Dive with AI

DocumentsKEM_A4036_ALS40_41.pdf ALS40A472DB063 Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALS40A472DB063

Applications	General Purpose
Capacitance	4700 µF
ESR (Equivalent Series Resistance)	27 mOhm
Height - Seated (Max) [Max]	2.52 in
Height - Seated (Max) [Max]	64 mm
Impedance	22 mOhms
Lead Spacing	0.504 in
Lead Spacing	12.8 mm
Lifetime @ Temp.	6000 Hrs
Mounting Type	Chassis Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Screw Terminals
Polarization	Polar
Ripple Current @ High Frequency	7.5 A
Ripple Current @ Low Frequency	6.7 A
Size / Dimension [diameter]	1.417 in
Size / Dimension [diameter]	36 mm
Tolerance	20 %
Voltage - Rated	63 V

ALS40A Series

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	ESR (Equivalent Series Resistance)	Mounting Type	Applications	Ripple Current @ Low Frequency	Polarization	Lifetime @ Temp.	Tolerance	Package / Case	Impedance	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET ALS40A472DB063	2.52 in	64 mm	63 V	27 mOhm	Chassis Mount	General Purpose	6.7 A	Polar	6000 Hrs	20 %	Radial Can - Screw Terminals	22 mOhms	0.504 in	12.8 mm	7.5 A	1.417 in	36 mm	4700 µF	-40 °C	105 ░C
KEMET ALS40A473DF025			25 VDC	9 mOhm	Chassis Mount	General Purpose	14 A	Polar	6000 Hrs	20 %	Radial Can - Screw Terminals	8 mOhms	0.504 in	12.8 mm	14.7 A	1.417 in	36 mm	47 mF	-40 °C	105 ░C	4.134 "	105 mm
KEMET ALS40A103KF100	4.213 in	107 mm	100 V	21 mOhm	Chassis Mount	General Purpose	10.9 A	Polar	7000 Hrs	20 %	Radial Can - Screw Terminals	18 mOhms	0.874 in	22.2 mm	11.5 A	2.008 "	51 mm	10000 µF	-40 °C	105 ░C
KEMET ALS40A472DF100			100 V	26 mOhm	Chassis Mount	General Purpose	8.1 A	Polar	6000 Hrs	20 %	Radial Can - Screw Terminals	21 mOhms	0.504 in	12.8 mm	9.3 A	1.417 in	36 mm	4700 µF	-40 °C	105 ░C	4.134 "	105 mm
KEMET ALS40A221DE450			450 V	487 mOhm	Chassis Mount	General Purpose	2.5 A	Polar	6000 Hrs	20 %	Radial Can - Screw Terminals	242 mOhms	0.504 in	12.8 mm	6.2 A	1.417 in	36 mm	220 µF	-40 °C	105 ░C	3.228 in	82 mm
KEMET ALS40A104KF025	4.213 in	107 mm	25 VDC	9 mOhm	Chassis Mount	General Purpose	16.4 A	Polar	7000 Hrs	20 %	Radial Can - Screw Terminals	8 mOhms	0.874 in	22.2 mm	16.7 A	2.008 "	51 mm	100000 µF	-40 °C	105 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.33
		10	$ 12.33
		50	$ 10.66
		100	$ 9.60
		500	$ 8.86
		1000	$ 8.33

Description

General part information

ALS40A Series

4700 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 27mOhm @ 100Hz 6000 Hrs @ 105°C

Documents

Technical documentation and resources

KEM_A4036_ALS40_41.pdf

Datasheet

ALS40A472DB063 Spec

Datasheet
