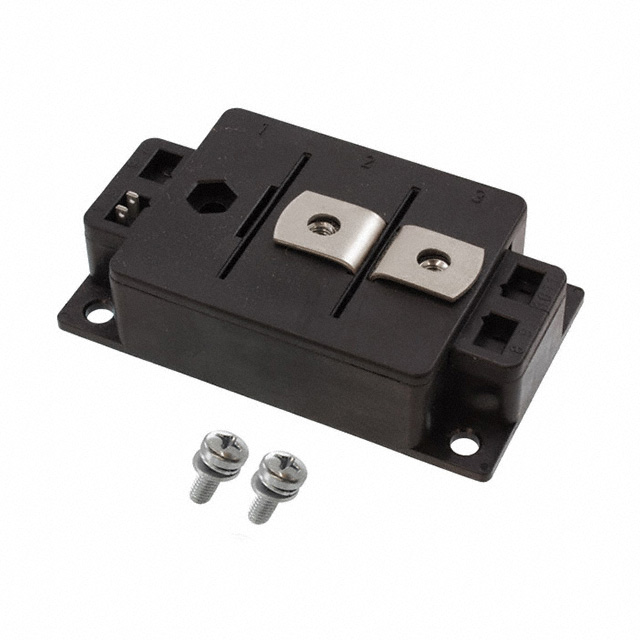

VMO580-02F

Obsolete

IXYS

MOSFET N-CH 200V 580A Y3-LI

Search across all available documentation for this part.

Obsolete

IXYS

MOSFET N-CH 200V 580A Y3-LI

Technical Specifications

Parameters and characteristics for this part

Specification	VMO580-02F

Current - Continuous Drain (Id) @ 25°C	580 A
Drain to Source Voltage (Vdss)	200 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	2750 nC
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Y3-Li
Rds On (Max) @ Id, Vgs	3.8 mOhm
Supplier Device Package	Y3-Li
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	4 V

Part	Package / Case	Technology	Current - Continuous Drain (Id) @ 25°C	Vgs (Max)	Drive Voltage (Max Rds On, Min Rds On)	FET Type	Gate Charge (Qg) (Max) @ Vgs [Max]	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Vgs(th) (Max) @ Id	Supplier Device Package
IXYS VMO580-02F	Y3-Li	MOSFET (Metal Oxide)	580 A	20 V	10 V	N-Channel	2750 nC	200 V	3.8 mOhm	Chassis Mount	150 °C	-40 °C	4 V	Y3-Li

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 200 V 580A (Tc) Chassis Mount Y3-Li

Technical documentation and resources

No documents available
