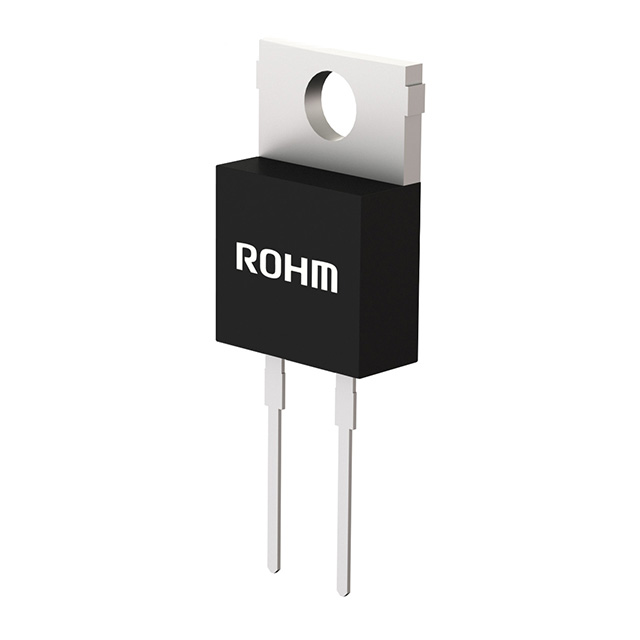

SCS304AHGC9

LTB

Rohm Semiconductor

DIODE SIL CARB 650V 4A TO220ACP

Search across all available documentation for this part.

LTB

Rohm Semiconductor

DIODE SIL CARB 650V 4A TO220ACP

Technical Specifications

Parameters and characteristics for this part

Specification	SCS304AHGC9

Capacitance @ Vr, F	200 pF
Current - Average Rectified (Io)	4 A
Current - Reverse Leakage @ Vr	20 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 °C
Package / Case	TO-220-2
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	TO-220ACP
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	650 V
Voltage - Forward (Vf) (Max) @ If	1.5 V

650V, 4A, SMD, High Surge Resistance, Silicon-carbide (SiC) SBD

Part	Mounting Type	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Package / Case	Operating Temperature - Junction [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Technology	Capacitance @ Vr, F	Supplier Device Package
Rohm Semiconductor SCS304AJTLL	Surface Mount	0 ns	20 µA	4 A	1.5 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	175 °C	650 V	No Recovery Time	SiC (Silicon Carbide) Schottky	200 pF
Rohm Semiconductor SCS304AHGC9	Through Hole	0 ns	20 µA	4 A	1.5 V	TO-220-2	175 °C	650 V	No Recovery Time	SiC (Silicon Carbide) Schottky	200 pF	TO-220ACP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Low forward voltage, negligible recovery time/current. Suitable for switch mode power supply, uninterruptible power supply, solar inverter, etc.
