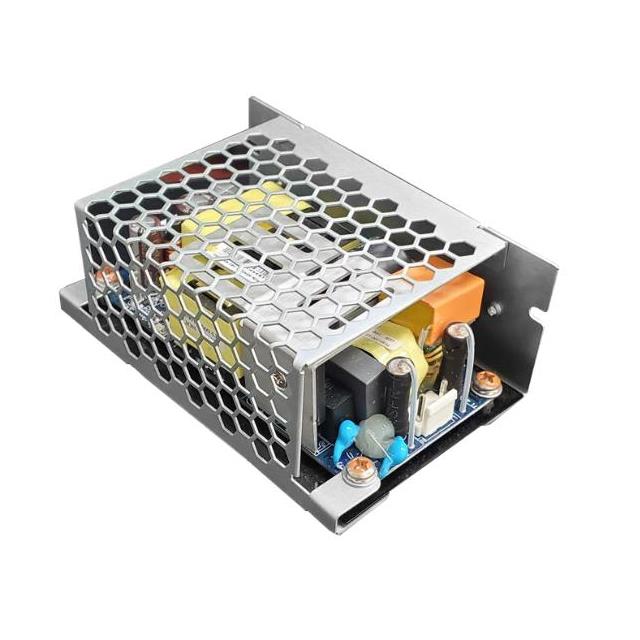

ASM201-280-BEH-PF1
ActiveAstrodyne TDI
AC/DC CONVERTER 28V 140W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASM201-280-BEH-PF1
ActiveAstrodyne TDI
AC/DC CONVERTER 28V 140W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASM201-280-BEH-PF1 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | cTUVus, TUV, CB, CE |
| Current - Output 1 | 5 A |
| Efficiency | 94 % |
| Features | Universal Input, Standby Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 140 W |
| Power (Watts) | 199 W |
| Size / Dimension [x] | 4.17 in |
| Size / Dimension [x] | 105.9 mm |
| Size / Dimension [y] | 2.68 " |
| Size / Dimension [y] | 68.1 mm |
| Size / Dimension [z] | 1.57 " |
| Size / Dimension [z] | 39.9 mm |
| Standard Number | 60950-1, 60601-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 28 V |
ASM201 Series
| Part | Standard Number | Voltage - Output 1 | Features | Current - Output 1 | Minimum Load Required | Power (Watts) | Power (Watts) | Number of Outputs | Applications | Type | Voltage - Isolation | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Approval Agency | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Astrodyne TDI | 60601-1 60950-1 62368-1 | 28 V | Standby Output Universal Input | 5 A | 140 W | 199 W | 1 | ITE (Commercial) Medical | Open Frame | 4000 V | 94 % | 85 °C | -40 °C | 50.8 mm | 4 in | 1.11 in | 101.6 mm | 28.2 mm | 2 in | CB CE cTUVus TUV | Chassis Mount | 80 VAC | 240 VAC | ||
Astrodyne TDI | 60601-1 60950-1 62368-1 | 19 V | Standby Output Universal Input | 7.4 A | 141 W 200 W | 1 | ITE (Commercial) Medical | Open Frame | 4000 V | 93 % | 85 °C | -40 °C | 50.8 mm | 4 in | 1.11 in | 101.6 mm | 28.2 mm | 2 in | CB CE cTUVus TUV | Chassis Mount | 80 VAC | 240 VAC | |||
Astrodyne TDI | 60601-1 60950-1 62368-1 | 48 V | Standby Output Universal Input | 2.9 A | 139 W | 202 W | 1 | ITE (Commercial) Medical | Open Frame | 4000 V | 95 % | 85 °C | -40 °C | 50.8 mm | 4 in | 1.11 in | 101.6 mm | 28.2 mm | 2 in | CB CE cTUVus TUV | Chassis Mount | 80 VAC | 240 VAC | ||
Astrodyne TDI | 60601-1 60950-1 62368-1 | 24 V | Standby Output Universal Input | 142 W | 202 W | 1 | ITE (Commercial) Medical | Enclosed | 4000 V | 94 % | 85 °C | -40 °C | 68.1 mm | 4.17 in | 1.57 " | 105.9 mm | 39.9 mm | 2.68 " | CB CE cTUVus TUV | Chassis Mount | 80 VAC | 240 VAC | |||
Astrodyne TDI | 60601-1 60950-1 62368-1 | 54 V | Standby Output Universal Input | 2.6 A | 140 W | 200 W | 1 | ITE (Commercial) Medical | Enclosed | 4000 V | 95 % | 85 °C | -40 °C | 68.1 mm | 4.17 in | 1.57 " | 105.9 mm | 39.9 mm | 2.68 " | CB CE cTUVus TUV | Chassis Mount | 80 VAC | 240 VAC | ||
Astrodyne TDI | 60601-1 60950-1 62368-1 | 15 V | Standby Output Universal Input | 9.4 A | 141 W 201 W | 1 | ITE (Commercial) Medical | Enclosed | 4000 V | 93 % | 85 °C | -40 °C | 68.1 mm | 4.17 in | 1.57 " | 105.9 mm | 39.9 mm | 2.68 " | CB CE cTUVus TUV | Chassis Mount | 80 VAC | 240 VAC | |||
Astrodyne TDI | 60601-1 60950-1 62368-1 | 36 V | Standby Output Universal Input | 3.8 A | 137 W | 198 W | 1 | ITE (Commercial) Medical | Open Frame | 4000 V | 94 % | 85 °C | -40 °C | 50.8 mm | 4 in | 1.11 in | 101.6 mm | 28.2 mm | 2 in | CB CE cTUVus TUV | Chassis Mount | 80 VAC | 240 VAC | Forced Air | |
Astrodyne TDI | 15 V | Universal Input | 13.4 A | 200 W | 1 | ITE (Commercial) Medical | Enclosed | 4000 V | 85 °C | -40 °C | 68.1 mm | 4.17 in | 1.57 " | 105.9 mm | 39.9 mm | 2.68 " | 80 VAC | 264 VAC | |||||||
Astrodyne TDI | 60601-1 60950-1 62368-1 | 28 V | Standby Output Universal Input | 5 A | 140 W | 199 W | 1 | ITE (Commercial) Medical | Enclosed | 4000 V | 94 % | 85 °C | -40 °C | 68.1 mm | 4.17 in | 1.57 " | 105.9 mm | 39.9 mm | 2.68 " | CB CE cTUVus TUV | Chassis Mount | 80 VAC | 240 VAC | ||
Astrodyne TDI | 48 V | Universal Input | 4.2 A | 200 W | 1 | ITE (Commercial) Medical | Enclosed | 4000 V | 85 °C | -40 °C | 68.1 mm | 4.17 in | 1.57 " | 105.9 mm | 39.9 mm | 2.68 " | 80 VAC | 264 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 5 | $ 110.26 | |
| 10 | $ 100.24 | |||
| 25 | $ 91.13 | |||
Description
General part information
ASM201 Series
Enclosed AC DC Converters 1 Output 28V 80 ~ 240 VAC Input
