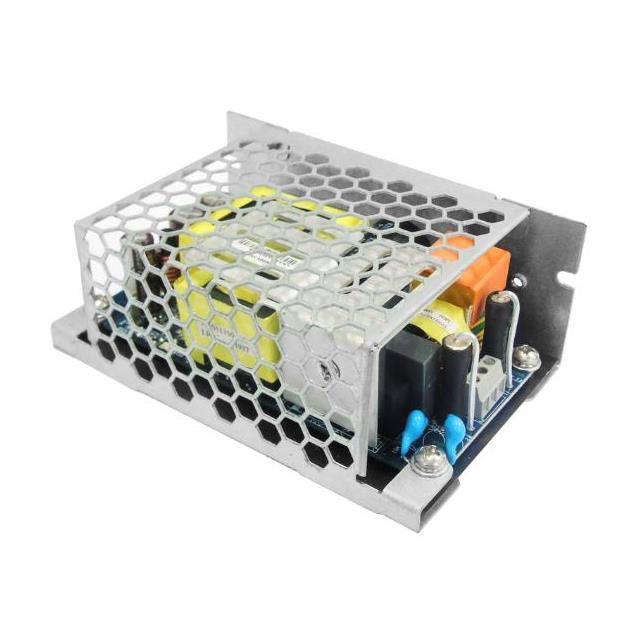

ASM201-150-BET-PF1

Active

Astrodyne TDI

AC/DC CONVERTER 15V 200W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ASM201-150-BET-PF1

Active

Astrodyne TDI

AC/DC CONVERTER 15V 200W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ASM201-150-BET-PF1

Applications	ITE (Commercial), Medical
Current - Output 1	13.4 A
Features	Universal Input
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	200 W
Size / Dimension [x]	4.17 in
Size / Dimension [x]	105.9 mm
Size / Dimension [y]	2.68 "
Size / Dimension [y]	68.1 mm
Size / Dimension [z]	1.57 "
Size / Dimension [z]	39.9 mm
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

ASM201 Series

Part	Standard Number	Voltage - Output 1	Features	Current - Output 1	Power (Watts)	Power (Watts)	Number of Outputs	Applications	Type	Voltage - Isolation	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)
Astrodyne TDI ASM201-280-BNH-PF1	60601-1 60950-1 62368-1	28 V	Standby Output Universal Input	5 A	140 W	199 W	1	ITE (Commercial) Medical	Open Frame	4000 V	94 %	85 °C	-40 °C	50.8 mm	4 in	1.11 in	101.6 mm	28.2 mm	2 in	CB CE cTUVus TUV	Chassis Mount	80 VAC	240 VAC
Astrodyne TDI ASM201-190-BNH-PF1	60601-1 60950-1 62368-1	19 V	Standby Output Universal Input	7.4 A	141 W 200 W		1	ITE (Commercial) Medical	Open Frame	4000 V	93 %	85 °C	-40 °C	50.8 mm	4 in	1.11 in	101.6 mm	28.2 mm	2 in	CB CE cTUVus TUV	Chassis Mount	80 VAC	240 VAC
Astrodyne TDI ASM201-480-BNH-PF1	60601-1 60950-1 62368-1	48 V	Standby Output Universal Input	2.9 A	139 W	202 W	1	ITE (Commercial) Medical	Open Frame	4000 V	95 %	85 °C	-40 °C	50.8 mm	4 in	1.11 in	101.6 mm	28.2 mm	2 in	CB CE cTUVus TUV	Chassis Mount	80 VAC	240 VAC
Astrodyne TDI ASM201-240-BEH-PF1	60601-1 60950-1 62368-1	24 V	Standby Output Universal Input		142 W	202 W	1	ITE (Commercial) Medical	Enclosed	4000 V	94 %	85 °C	-40 °C	68.1 mm	4.17 in	1.57 "	105.9 mm	39.9 mm	2.68 "	CB CE cTUVus TUV	Chassis Mount	80 VAC	240 VAC
Astrodyne TDI ASM201-540-BEH-PF1	60601-1 60950-1 62368-1	54 V	Standby Output Universal Input	2.6 A	140 W	200 W	1	ITE (Commercial) Medical	Enclosed	4000 V	95 %	85 °C	-40 °C	68.1 mm	4.17 in	1.57 "	105.9 mm	39.9 mm	2.68 "	CB CE cTUVus TUV	Chassis Mount	80 VAC	240 VAC
Astrodyne TDI ASM201-150-BEH-PF1	60601-1 60950-1 62368-1	15 V	Standby Output Universal Input	9.4 A	141 W 201 W		1	ITE (Commercial) Medical	Enclosed	4000 V	93 %	85 °C	-40 °C	68.1 mm	4.17 in	1.57 "	105.9 mm	39.9 mm	2.68 "	CB CE cTUVus TUV	Chassis Mount	80 VAC	240 VAC
Astrodyne TDI ASM201-360-BNH-PF1	60601-1 60950-1 62368-1	36 V	Standby Output Universal Input	3.8 A	137 W	198 W	1	ITE (Commercial) Medical	Open Frame	4000 V	94 %	85 °C	-40 °C	50.8 mm	4 in	1.11 in	101.6 mm	28.2 mm	2 in	CB CE cTUVus TUV	Chassis Mount	80 VAC	240 VAC	Forced Air
Astrodyne TDI ASM201-150-BET-PF1		15 V	Universal Input	13.4 A	200 W		1	ITE (Commercial) Medical	Enclosed	4000 V		85 °C	-40 °C	68.1 mm	4.17 in	1.57 "	105.9 mm	39.9 mm	2.68 "			80 VAC	264 VAC
Astrodyne TDI ASM201-280-BEH-PF1	60601-1 60950-1 62368-1	28 V	Standby Output Universal Input	5 A	140 W	199 W	1	ITE (Commercial) Medical	Enclosed	4000 V	94 %	85 °C	-40 °C	68.1 mm	4.17 in	1.57 "	105.9 mm	39.9 mm	2.68 "	CB CE cTUVus TUV	Chassis Mount	80 VAC	240 VAC
Astrodyne TDI ASM201-480-BET-PF1		48 V	Universal Input	4.2 A	200 W		1	ITE (Commercial) Medical	Enclosed	4000 V		85 °C	-40 °C	68.1 mm	4.17 in	1.57 "	105.9 mm	39.9 mm	2.68 "			80 VAC	264 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 110.26
		10	$ 100.24
		25	$ 91.13

Description

General part information

ASM201 Series

Enclosed AC DC Converters 1 Output 15V 80 ~ 264 VAC Input
