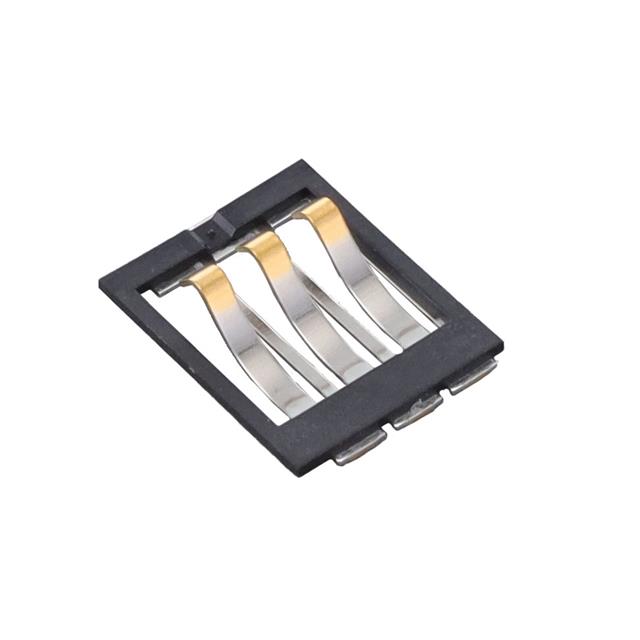

009155003101006

Active

Kyocera AVX

MODULAR BATTERY CONTACT, 3 WAY, 3A, FULL REEL

Search across all available documentation for this part.

Active

Kyocera AVX

MODULAR BATTERY CONTACT, 3 WAY, 3A, FULL REEL

Technical Specifications

Parameters and characteristics for this part

Part	Number of Contacts [custom]	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Mounting Type	Number of Contacts	Material
Kyocera AVX 009155004003016	4	0.098 in	2.5 mm	1	15 µin	0.38 µm	Battery Contact	Gold	Surface Mount
Kyocera AVX 009155003401006		0.157 in	4 mm	1	16 µin	0.41 µm	Battery Contact	Gold	Surface Mount	3	Beryllium Copper
Kyocera AVX 009155006401006	6	0.157 in	4 mm	1	16 µin	0.41 µm	Battery Contact	Gold	Surface Mount		Beryllium Copper
Kyocera AVX 009155004001016	4	0.098 in	2.5 mm	1	15 µin	0.38 µm	Battery Contact	Gold	Surface Mount
Kyocera AVX 009155002100006		0.098 in	2.5 mm	1	15 µin	0.38 µm	Battery Contact	Gold	Surface Mount
Kyocera AVX 009155005541006		0.098 in	2.5 mm	1	15 µin	0.38 µm	Battery Contact	Gold	Surface Mount Right Angle	5	Beryllium Copper
Kyocera AVX 009155003001016		0.098 in	2.5 mm	1	15 µin	0.38 µm	Battery Contact	Gold	Surface Mount	3
Kyocera AVX 009155002101006		0.098 in	2.5 mm	1	15 µin	0.38 µm	Battery Contact	Gold	Surface Mount
Kyocera AVX 009155002301006		0.118 in	3 mm	1	15 µin	0.38 µm	Battery Contact	Gold	Surface Mount Right Angle
Kyocera AVX 009155003101006		0.098 in	2.5 mm	1	15 µin	0.38 µm	Battery Contact	Gold	Surface Mount	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Spring Battery Contact Connector Surface Mount
