009155003001016

Active

Kyocera AVX

CONN SPRING BATTERY 3POS SMD

Search across all available documentation for this part.

Active

Kyocera AVX

CONN SPRING BATTERY 3POS SMD

Technical Specifications

Parameters and characteristics for this part

Part	Number of Contacts [custom]	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Mounting Type	Number of Contacts	Material
Kyocera AVX 009155004003016	4	0.098 in	2.5 mm	1	15 µin	0.38 µm	Battery Contact	Gold	Surface Mount
Kyocera AVX 009155003401006		0.157 in	4 mm	1	16 µin	0.41 µm	Battery Contact	Gold	Surface Mount	3	Beryllium Copper
Kyocera AVX 009155006401006	6	0.157 in	4 mm	1	16 µin	0.41 µm	Battery Contact	Gold	Surface Mount		Beryllium Copper
Kyocera AVX 009155004001016	4	0.098 in	2.5 mm	1	15 µin	0.38 µm	Battery Contact	Gold	Surface Mount
Kyocera AVX 009155002100006		0.098 in	2.5 mm	1	15 µin	0.38 µm	Battery Contact	Gold	Surface Mount
Kyocera AVX 009155005541006		0.098 in	2.5 mm	1	15 µin	0.38 µm	Battery Contact	Gold	Surface Mount Right Angle	5	Beryllium Copper
Kyocera AVX 009155003001016		0.098 in	2.5 mm	1	15 µin	0.38 µm	Battery Contact	Gold	Surface Mount	3
Kyocera AVX 009155002101006		0.098 in	2.5 mm	1	15 µin	0.38 µm	Battery Contact	Gold	Surface Mount
Kyocera AVX 009155002301006		0.118 in	3 mm	1	15 µin	0.38 µm	Battery Contact	Gold	Surface Mount Right Angle
Kyocera AVX 009155003101006		0.098 in	2.5 mm	1	15 µin	0.38 µm	Battery Contact	Gold	Surface Mount	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

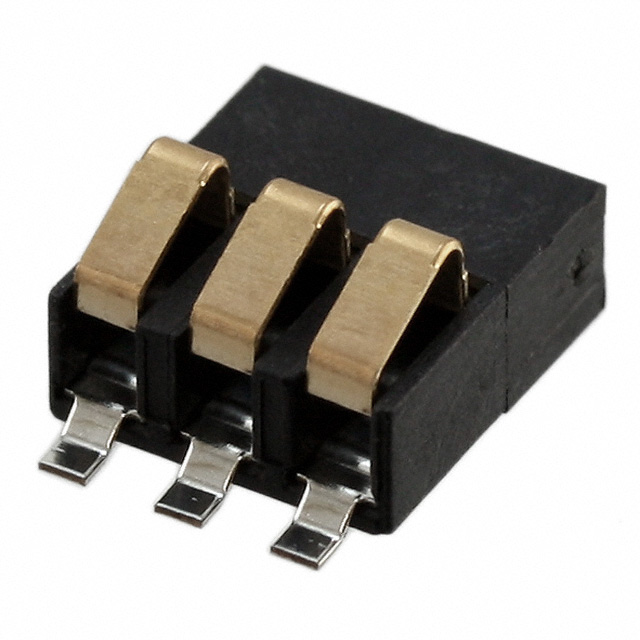

3 Position Spring Battery Contact Connector Surface Mount
