T3363009U

Active

Amphenol Tuchel Industrial

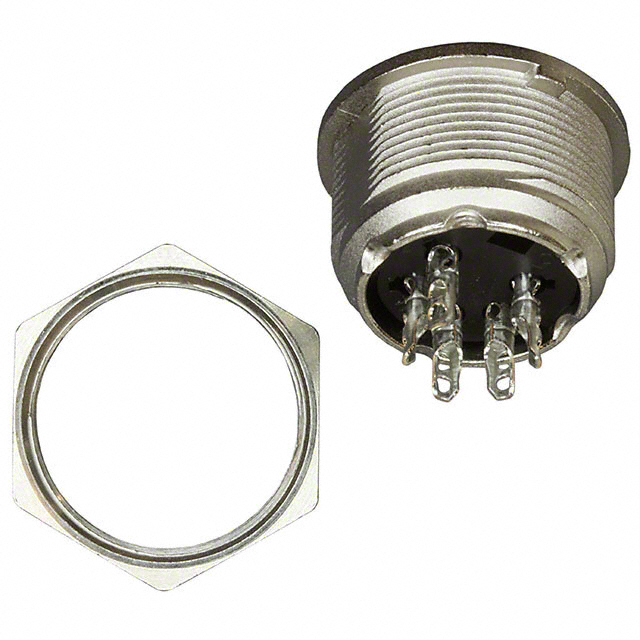

CONN RCPT FMALE 5P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T3363009U

Active

Amphenol Tuchel Industrial

CONN RCPT FMALE 5P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T3363009U

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Current Rating (Amps)	7 A
Ingress Protection	IP40
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-5
Shielding	Shielded
Voltage Rating	250 VDC

T336 Series

Part	Type	Ingress Protection	Contact Type	Shell Material	Features	Shielding	Material Flammability Rating	Housing Color	Shell Size - Insert	Contact Size	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Insert Material	Orientation	Mounting Type	Note	Shell Finish	Connector Type	Voltage Rating	Color	Contact Finish - Mating	Primary Material	Current Rating (Amps)	Mounting Feature	Termination
Amphenol Tuchel Industrial T3360551U	For Male Pins	IP40	Crimp	Die Cast	Cable Clamp Coupling Nut Strain Relief	Shielded	UL94 V-0	Silver	M16-5	1.5 mm	100 °C	-40 °C	Circular	Thermoplastic	Keyed	Free Hanging (In-Line)	Contacts Not Included	Nickel	Plug Housing
Amphenol Tuchel Industrial T3360002U		IP40		Die Cast	Cable Clamp Strain Relief	Shielded			M16-5		100 °C	-40 °C			Keyed	Free Hanging (In-Line)		Nickel	Male Pins Plug	250 VDC	Silver	Silver	Metal	7 A
Amphenol Tuchel Industrial T3361001U		IP40		Die Cast	Strain Relief	Shielded			M16-5		100 °C	-40 °C			Keyed	Free Hanging (In-Line)		Nickel	Female Sockets Plug	250 VDC	Silver	Silver	Metal	7 A
Amphenol Tuchel Industrial T3361010U		IP40		Die Cast	Stereo Strain Relief	Shielded			M16-5(S)		100 °C	-40 °C			Keyed	Free Hanging (In-Line)		Nickel	Female Sockets Plug	250 VDC	Silver	Silver	Metal	7 A
Amphenol Tuchel Industrial T3360010U		IP40		Die Cast	Stereo Strain Relief	Shielded			M16-5(S)		100 °C	-40 °C			Keyed	Free Hanging (In-Line)		Nickel	Male Pins Plug	250 VDC	Silver	Silver	Metal	7 A
Amphenol Tuchel Industrial T3363009U		IP40		Die Cast		Shielded			M16-5		100 °C	-40 °C			Keyed			Nickel	Receptacle Female Sockets	250 VDC	Silver	Silver	Metal	7 A	Bulkhead - Rear Side Nut
Amphenol Tuchel Industrial T3363010U		IP40		Die Cast	Stereo	Shielded			M16-5(S)		100 °C	-40 °C			Keyed			Nickel	Receptacle Female Sockets	250 VDC	Silver	Silver	Metal	7 A
Amphenol Tuchel Industrial T3360005U		IP40		Die Cast	Strain Relief	Shielded			M16-5		100 °C	-40 °C			Keyed	Free Hanging (In-Line) Right Angle		Nickel	Male Pins Plug	250 VDC	Silver	Silver	Metal	7 A
Amphenol Tuchel Industrial T3360018U		IP40		Die Cast	Strain Relief	Shielded			M16-5		100 °C	-40 °C			Keyed	Free Hanging (In-Line)		Nickel	Male Pins Plug	250 VDC	Silver	Gold	Metal	7 A
Amphenol Tuchel Industrial T3363400U		IP40		Die Cast		Shielded			M16-5		100 °C	-40 °C			Keyed	Panel Mount Through Hole		Nickel	Receptacle Female Sockets	250 VDC	Silver	Silver	Metal	7 A		Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.46
		10	$ 7.65
		25	$ 7.23
		50	$ 7.05
		100	$ 6.70
		250	$ 5.99
		500	$ 5.64
		1000	$ 4.93

Description

General part information

T336 Series

5 Position Circular Connector Receptacle, Female Sockets Solder Cup
