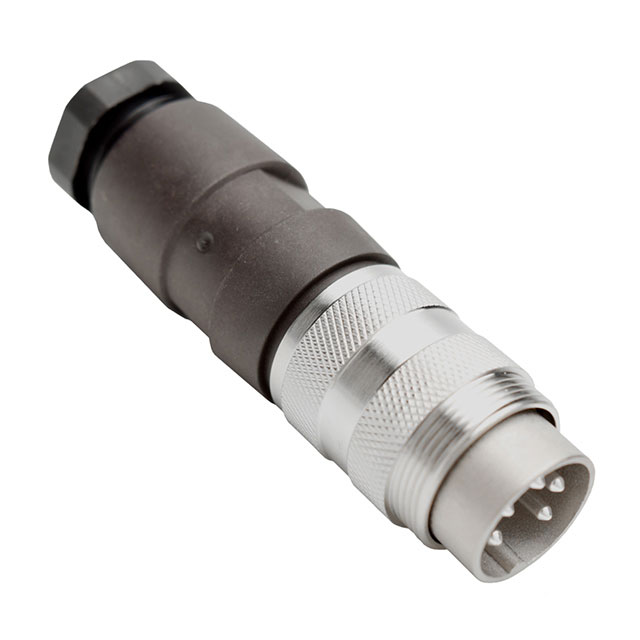

T3360002U

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 5P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC091 A,B,D Series Catalog Datasheet

T3360002U

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 5P SILV SLDR CUP

Deep-Dive with AI

DocumentsC091 A,B,D Series Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T3360002U

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Current Rating (Amps)	7 A
Features	Cable Clamp, Strain Relief
Ingress Protection	IP40
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-5
Shielding	Shielded
Voltage Rating	250 VDC

T336 Series

Part	Type	Ingress Protection	Contact Type	Shell Material	Features	Shielding	Material Flammability Rating	Housing Color	Shell Size - Insert	Contact Size	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Insert Material	Orientation	Mounting Type	Note	Shell Finish	Connector Type	Voltage Rating	Color	Contact Finish - Mating	Primary Material	Current Rating (Amps)	Mounting Feature	Termination
Amphenol Tuchel Industrial T3360551U	For Male Pins	IP40	Crimp	Die Cast	Cable Clamp Coupling Nut Strain Relief	Shielded	UL94 V-0	Silver	M16-5	1.5 mm	100 °C	-40 °C	Circular	Thermoplastic	Keyed	Free Hanging (In-Line)	Contacts Not Included	Nickel	Plug Housing
Amphenol Tuchel Industrial T3360002U		IP40		Die Cast	Cable Clamp Strain Relief	Shielded			M16-5		100 °C	-40 °C			Keyed	Free Hanging (In-Line)		Nickel	Male Pins Plug	250 VDC	Silver	Silver	Metal	7 A
Amphenol Tuchel Industrial T3361001U		IP40		Die Cast	Strain Relief	Shielded			M16-5		100 °C	-40 °C			Keyed	Free Hanging (In-Line)		Nickel	Female Sockets Plug	250 VDC	Silver	Silver	Metal	7 A
Amphenol Tuchel Industrial T3361010U		IP40		Die Cast	Stereo Strain Relief	Shielded			M16-5(S)		100 °C	-40 °C			Keyed	Free Hanging (In-Line)		Nickel	Female Sockets Plug	250 VDC	Silver	Silver	Metal	7 A
Amphenol Tuchel Industrial T3360010U		IP40		Die Cast	Stereo Strain Relief	Shielded			M16-5(S)		100 °C	-40 °C			Keyed	Free Hanging (In-Line)		Nickel	Male Pins Plug	250 VDC	Silver	Silver	Metal	7 A
Amphenol Tuchel Industrial T3363009U		IP40		Die Cast		Shielded			M16-5		100 °C	-40 °C			Keyed			Nickel	Receptacle Female Sockets	250 VDC	Silver	Silver	Metal	7 A	Bulkhead - Rear Side Nut
Amphenol Tuchel Industrial T3363010U		IP40		Die Cast	Stereo	Shielded			M16-5(S)		100 °C	-40 °C			Keyed			Nickel	Receptacle Female Sockets	250 VDC	Silver	Silver	Metal	7 A
Amphenol Tuchel Industrial T3360005U		IP40		Die Cast	Strain Relief	Shielded			M16-5		100 °C	-40 °C			Keyed	Free Hanging (In-Line) Right Angle		Nickel	Male Pins Plug	250 VDC	Silver	Silver	Metal	7 A
Amphenol Tuchel Industrial T3360018U		IP40		Die Cast	Strain Relief	Shielded			M16-5		100 °C	-40 °C			Keyed	Free Hanging (In-Line)		Nickel	Male Pins Plug	250 VDC	Silver	Gold	Metal	7 A
Amphenol Tuchel Industrial T3363400U		IP40		Die Cast		Shielded			M16-5		100 °C	-40 °C			Keyed	Panel Mount Through Hole		Nickel	Receptacle Female Sockets	250 VDC	Silver	Silver	Metal	7 A		Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.53
		10	$ 5.88
		25	$ 5.54
		50	$ 5.40
		100	$ 5.25
		300	$ 5.00

Description

General part information

T336 Series

5 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

C091 A,B,D Series Catalog

Datasheet
