09120023152

Active

HARTING Technology Group

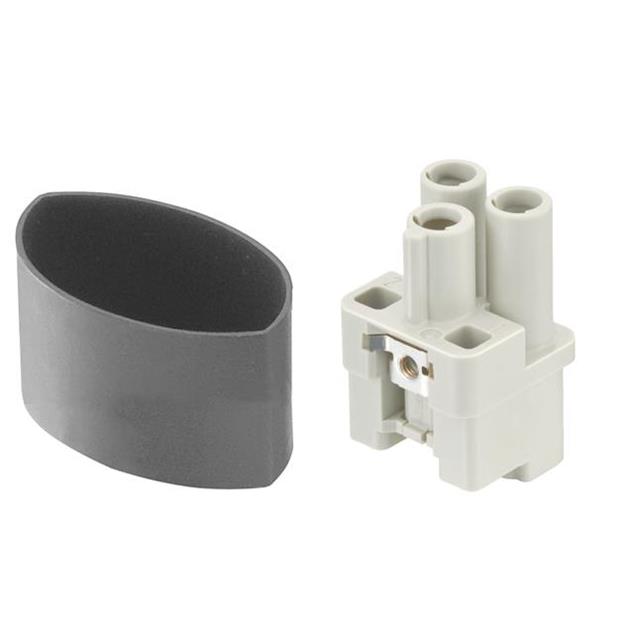

HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 1+PE CONTACTS, 3A, RECEPTACLE

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 1+PE CONTACTS, 3A, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	09120023152

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han® C
Current Rating (Amps)	40 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	Ground
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Termination Style	Crimp
Voltage Rating	830 V

Part	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Number of Positions	Contact Type	Size	Gender	Connector Type	Termination Style	Housing Material	Material Flammability Rating	Voltage Rating	Current Rating (Amps)
HARTING Technology Group 09120023152	Gray	125 °C	-40 °C	Ground	2	Han® C	3 A	Female	Insert without Contacts	Crimp	Polycarbonate (PC)	UL94 V-0	830 V	40 A
HARTING Technology Group 09120023052	Gray	125 °C	-40 °C	Ground	2	Han® C	3 A	Male	Insert without Contacts	Crimp	Polycarbonate (PC)	UL94 V-0	830 V	40 A
HARTING Technology Group 09120023051	Gray	125 °C	-40 °C	Ground	2	Han® C	3 A	Male	Insert without Contacts	Crimp	Polycarbonate (PC)	UL94 V-0	400 V	40 A
HARTING Technology Group 09120023151	Gray	125 °C	-40 °C	Ground	2	Han® C	3 A	Female	Insert without Contacts	Crimp	Polycarbonate (PC)	UL94 V-0	400 V	40 A
HARTING Technology Group 09120023011	Gray	125 °C	-40 °C		2	Han® D	3 A	Male	Module without Contacts	Crimp	Polycarbonate (PC)		50 V	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts Gray 2+Ground Position Crimp

Technical documentation and resources
