09120023011

Active

HARTING Technology Group

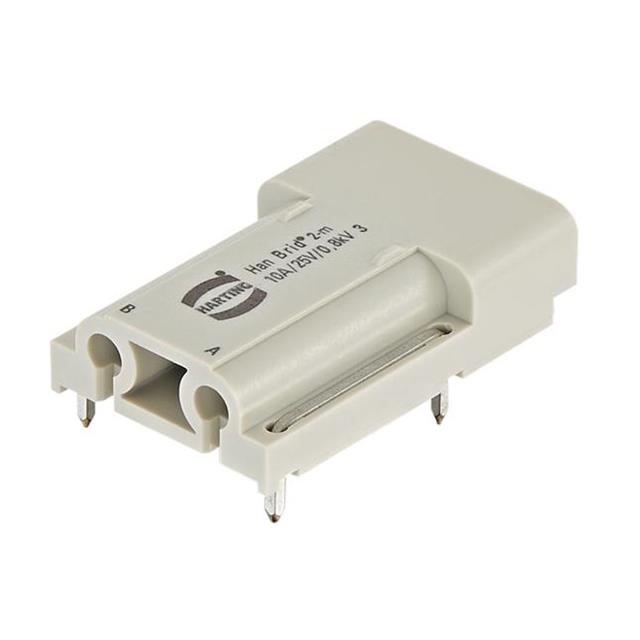

HAN BRID-MALE-C CU-BUS-MODULE (G) ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN BRID-MALE-C CU-BUS-MODULE (G) ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Number of Positions	Contact Type	Size	Gender	Connector Type	Termination Style	Housing Material	Material Flammability Rating	Voltage Rating	Current Rating (Amps)
HARTING Technology Group 09120023152	Gray	125 °C	-40 °C	Ground	2	Han® C	3 A	Female	Insert without Contacts	Crimp	Polycarbonate (PC)	UL94 V-0	830 V	40 A
HARTING Technology Group 09120023052	Gray	125 °C	-40 °C	Ground	2	Han® C	3 A	Male	Insert without Contacts	Crimp	Polycarbonate (PC)	UL94 V-0	830 V	40 A
HARTING Technology Group 09120023051	Gray	125 °C	-40 °C	Ground	2	Han® C	3 A	Male	Insert without Contacts	Crimp	Polycarbonate (PC)	UL94 V-0	400 V	40 A
HARTING Technology Group 09120023151	Gray	125 °C	-40 °C	Ground	2	Han® C	3 A	Female	Insert without Contacts	Crimp	Polycarbonate (PC)	UL94 V-0	400 V	40 A
HARTING Technology Group 09120023011	Gray	125 °C	-40 °C		2	Han® D	3 A	Male	Module without Contacts	Crimp	Polycarbonate (PC)		50 V	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Module without Contacts Gray 2 Position Crimp
