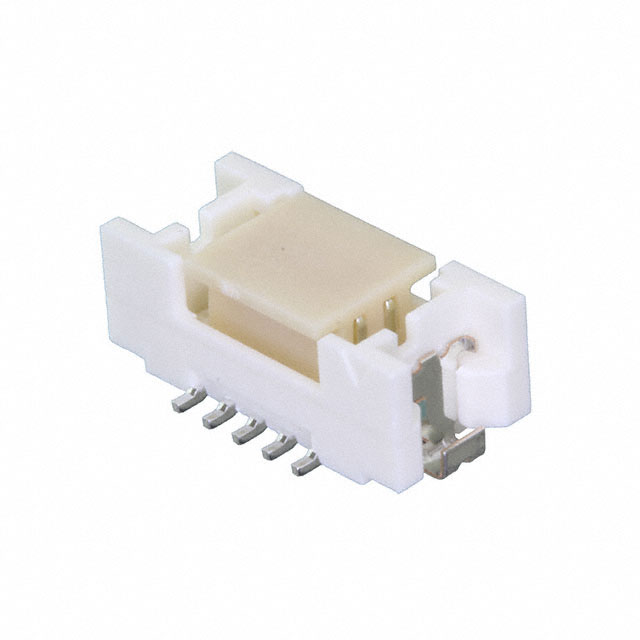

DF13EA-10DP-1.25V(21)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER SMD 10POS 1.25MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF13EA-10DP-1.25V(21)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER SMD 10POS 1.25MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF13EA-10DP-1.25V(21)

Connector Type	Header
Contact Finish - Mating	Tin-Copper
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Beige
Insulation Height	4.8 mm
Insulation Height	0.189 in
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	5.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Row Spacing - Mating	0.049 in
Row Spacing - Mating	1.25 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	150 VDC

DF13EA Series

Part	Style	Features	Insulation Color	Fastening Type	Voltage Rating	Termination	Contact Type	Contact Shape	Number of Positions Loaded	Number of Rows	Shrouding	Material Flammability Rating	Connector Type	Insulation Material	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Mounting Type	Current Rating (Amps)	Number of Positions	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mated Stacking Heights
Hirose Electric USA, Inc. DF13EA-10DP-1.25V(35)
Hirose Electric USA, Inc. DF13EA-40DP-1.25V(22)	Board to Cable/Wire	Solder Retention	Beige	Push-Pull	29.9 VAC/DC	Solder	Male Pin	Square	All	2	Shrouded - 2 Wall	UL94 V-0	Header	Nylon Polyamide (PA)	1.25 mm	0.049 in	-35 °C	85 °C	4.8 mm	0.189 in	Surface Mount	1 A	40	Brass	0.049 in	1.25 mm
Hirose Electric USA, Inc. DF13EA-10DP-1.25V(51)	Board to Cable/Wire	Solder Retention	Beige	Push-Pull	150 VDC	Solder	Male Pin	Square	All	2	Shrouded - 4 Wall	UL94 V-0	Header	Nylon Polyamide (PA)	1.25 mm	0.049 in	-35 °C	85 °C	4.8 mm	0.189 in	Surface Mount		10	Brass	0.049 in	1.25 mm	2.4 mm	0.094 in	Gold	0.203 Ám	8 Áin	Tin-Copper	1 çm	39.4 çin	5.8 mm
Hirose Electric USA, Inc. DF13EA-20DP-1.25V(22)	Board to Cable/Wire	Solder Retention	Beige	Detent Lock	150 VAC	Solder	Male Pin	Square	All	2	Shrouded - 4 Wall	UL94 V-0	Header	Nylon Polyamide (PA)	1.25 mm	0.049 in	-35 °C	85 °C	4.8 mm	0.189 in	Surface Mount	1 A	20	Brass	0.049 in	1.25 mm	2.4 mm	0.094 in		1 µm	39.4 µin	Tin	1 çm	39.4 çin
Hirose Electric USA, Inc. DF13EA-40DP-1.25V(82)	Board to Cable/Wire	Solder Retention	Beige	Push-Pull	150 VDC	Solder	Male Pin	Square	All	2	Shrouded - 4 Wall	UL94 V-0	Header	Nylon Polyamide (PA)	1.25 mm	0.049 in	-35 °C	85 °C	4.8 mm	0.189 in	Surface Mount		40	Brass	0.049 in	1.25 mm	2.4 mm	0.094 in	Gold	0.76 Ám	30 Áin	Tin-Copper	1 çm	39.4 çin	5.8 mm
Hirose Electric USA, Inc. DF13EA-10DP-1.25V(84)
Hirose Electric USA, Inc. DF13EA-40DP-1.25V(65)
Hirose Electric USA, Inc. DF13EA-10DP-1.25V(21)	Board to Cable/Wire	Solder Retention	Beige	Push-Pull	150 VDC	Solder	Male Pin	Square	All	2	Shrouded - 4 Wall	UL94 V-0	Header	Nylon Polyamide (PA)	1.25 mm	0.049 in	-35 °C	85 °C	4.8 mm	0.189 in	Surface Mount		10	Brass	0.049 in	1.25 mm			Tin-Copper	1 µm	39.4 µin				5.8 mm
Hirose Electric USA, Inc. DF13EA-30DP-1.25V(83)
Hirose Electric USA, Inc. DF13EA-20DP-1.25V(25)	Board to Cable/Wire	Solder Retention	Beige	Push-Pull	150 VDC	Solder	Male Pin	Square	All	2	Shrouded - 4 Wall	UL94 V-0	Header	Nylon Polyamide (PA)	1.25 mm	0.049 in	-35 °C	85 °C	4.8 mm	0.189 in	Surface Mount		20	Brass	0.049 in	1.25 mm	2.4 mm	0.094 in	Tin-Copper	1 µm	39.4 µin				5.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DF13EA Series

Connector Header Surface Mount 10 position 0.049" (1.25mm)
