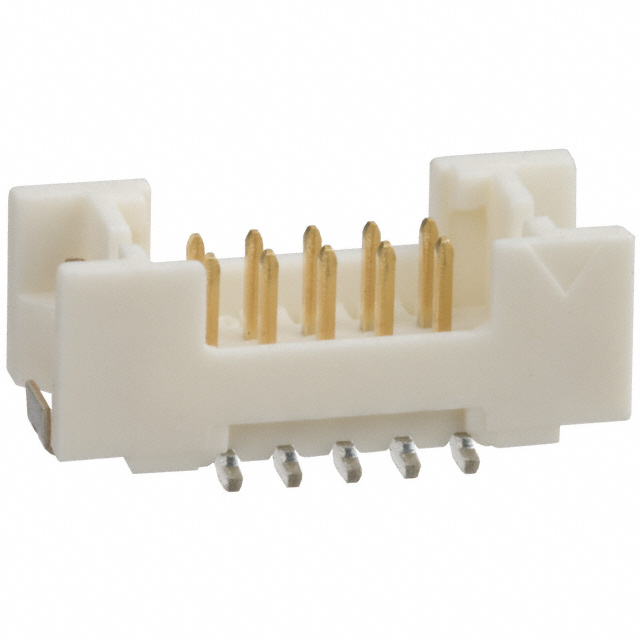

DF13EA-10DP-1.25V(51)
ObsoleteHirose Electric USA, Inc.
CONN HEADER SMD 10POS 1.25MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF13EA-10DP-1.25V(51)
ObsoleteHirose Electric USA, Inc.
CONN HEADER SMD 10POS 1.25MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF13EA-10DP-1.25V(51) |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Copper |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Finish Thickness - Post | 1 çm |
| Contact Finish Thickness - Post | 39.4 çin |
| Contact Length - Mating [custom] | 2.4 mm |
| Contact Length - Mating [custom] | 0.094 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Solder Retention |
| Insulation Color | Beige |
| Insulation Height | 4.8 mm |
| Insulation Height | 0.189 in |
| Insulation Material | Polyamide (PA), Nylon |
| Mated Stacking Heights | 5.8 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -35 °C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Row Spacing - Mating | 0.049 in |
| Row Spacing - Mating | 1.25 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 150 VDC |
DF13EA Series
| Part | Style | Features | Insulation Color | Fastening Type | Voltage Rating | Termination | Contact Type | Contact Shape | Number of Positions Loaded | Number of Rows | Shrouding | Material Flammability Rating | Connector Type | Insulation Material | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Mounting Type | Current Rating (Amps) | Number of Positions | Contact Material | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Mating [custom] | Contact Length - Mating [custom] | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mated Stacking Heights |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | |||||||||||||||||||||||||||||||||||
Hirose Electric USA, Inc. | Board to Cable/Wire | Solder Retention | Beige | Push-Pull | 29.9 VAC/DC | Solder | Male Pin | Square | All | 2 | Shrouded - 2 Wall | UL94 V-0 | Header | Nylon Polyamide (PA) | 1.25 mm | 0.049 in | -35 °C | 85 °C | 4.8 mm | 0.189 in | Surface Mount | 1 A | 40 | Brass | 0.049 in | 1.25 mm | |||||||||
Hirose Electric USA, Inc. | Board to Cable/Wire | Solder Retention | Beige | Push-Pull | 150 VDC | Solder | Male Pin | Square | All | 2 | Shrouded - 4 Wall | UL94 V-0 | Header | Nylon Polyamide (PA) | 1.25 mm | 0.049 in | -35 °C | 85 °C | 4.8 mm | 0.189 in | Surface Mount | 10 | Brass | 0.049 in | 1.25 mm | 2.4 mm | 0.094 in | Gold | 0.203 Ám | 8 Áin | Tin-Copper | 1 çm | 39.4 çin | 5.8 mm | |
Hirose Electric USA, Inc. | Board to Cable/Wire | Solder Retention | Beige | Detent Lock | 150 VAC | Solder | Male Pin | Square | All | 2 | Shrouded - 4 Wall | UL94 V-0 | Header | Nylon Polyamide (PA) | 1.25 mm | 0.049 in | -35 °C | 85 °C | 4.8 mm | 0.189 in | Surface Mount | 1 A | 20 | Brass | 0.049 in | 1.25 mm | 2.4 mm | 0.094 in | 1 µm | 39.4 µin | Tin | 1 çm | 39.4 çin | ||
Hirose Electric USA, Inc. | Board to Cable/Wire | Solder Retention | Beige | Push-Pull | 150 VDC | Solder | Male Pin | Square | All | 2 | Shrouded - 4 Wall | UL94 V-0 | Header | Nylon Polyamide (PA) | 1.25 mm | 0.049 in | -35 °C | 85 °C | 4.8 mm | 0.189 in | Surface Mount | 40 | Brass | 0.049 in | 1.25 mm | 2.4 mm | 0.094 in | Gold | 0.76 Ám | 30 Áin | Tin-Copper | 1 çm | 39.4 çin | 5.8 mm | |
Hirose Electric USA, Inc. | |||||||||||||||||||||||||||||||||||
Hirose Electric USA, Inc. | |||||||||||||||||||||||||||||||||||
Hirose Electric USA, Inc. | Board to Cable/Wire | Solder Retention | Beige | Push-Pull | 150 VDC | Solder | Male Pin | Square | All | 2 | Shrouded - 4 Wall | UL94 V-0 | Header | Nylon Polyamide (PA) | 1.25 mm | 0.049 in | -35 °C | 85 °C | 4.8 mm | 0.189 in | Surface Mount | 10 | Brass | 0.049 in | 1.25 mm | Tin-Copper | 1 µm | 39.4 µin | 5.8 mm | ||||||
Hirose Electric USA, Inc. | |||||||||||||||||||||||||||||||||||
Hirose Electric USA, Inc. | Board to Cable/Wire | Solder Retention | Beige | Push-Pull | 150 VDC | Solder | Male Pin | Square | All | 2 | Shrouded - 4 Wall | UL94 V-0 | Header | Nylon Polyamide (PA) | 1.25 mm | 0.049 in | -35 °C | 85 °C | 4.8 mm | 0.189 in | Surface Mount | 20 | Brass | 0.049 in | 1.25 mm | 2.4 mm | 0.094 in | Tin-Copper | 1 µm | 39.4 µin | 5.8 mm |
