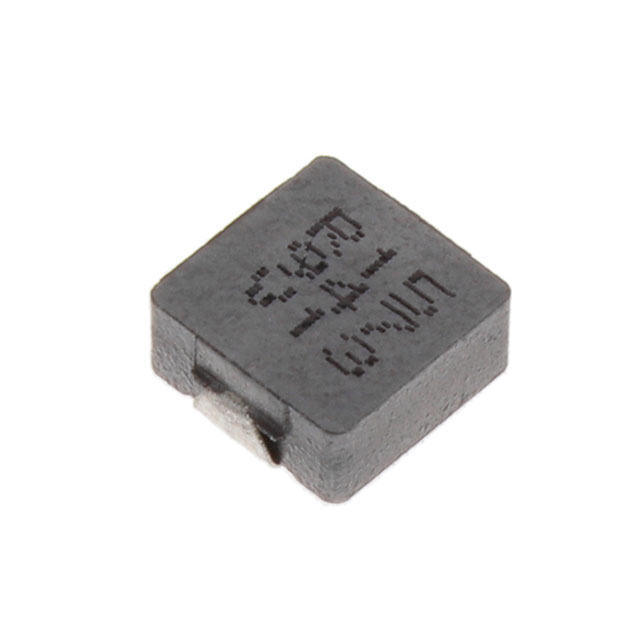

CMLE063T-4R7MS

Active

Delta Electronics/Cyntec

FIXED IND 4.7UH 6.7A 26MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMLE063T-4R7MS

Active

Delta Electronics/Cyntec

FIXED IND 4.7UH 6.7A 26MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMLE063T-4R7MS

Current - Saturation (Isat)	8 A
Current Rating (Amps)	6.7 A
DC Resistance (DCR) [Max]	26 mOhm
Height - Seated (Max)	3 mm
Height - Seated (Max) [Max]	0.118 in
Inductance	4.7 ÁH
Inductance Frequency - Test	100 kHz
Material - Core	Metal
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension [x]	6.95 mm
Size / Dimension [x]	0.274 "
Size / Dimension [y]	6.6 mm
Size / Dimension [y]	0.26 "
Tolerance	20 %

CMLE063T Series

Part	Tolerance	Mounting Type	Inductance Frequency - Test	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Current - Saturation (Isat)	Inductance	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Material - Core	Shielding	DC Resistance (DCR)	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) [Max]
Delta Electronics/Cyntec CMLE063T-R15MS0R905	20 %	Surface Mount	100 kHz	38 A	0.26 " 6.6 mm	0.285 in 7.25 mm	41 A	150 nH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded	0.9 mOhm
Delta Electronics/Cyntec CMLE063T-R68MS	20 %	Surface Mount	100 kHz	16.5 A	0.26 "	0.274 "	17 A	0.68 µH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded		6.95 mm	6.6 mm
Delta Electronics/Cyntec CMLE063T-1R0MS	20 %	Surface Mount	100 kHz	16 A	0.26 "	0.274 "	14 A	1 µH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded		6.95 mm	6.6 mm	6.5 mOhm
Delta Electronics/Cyntec CMLE063T-R22MS	20 %	Surface Mount	100 kHz	37 A	0.26 " 6.6 mm	0.285 in 7.25 mm	32 A	220 nH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded				1.3 mOhm
Delta Electronics/Cyntec CMLE063T-4R7MS	20 %	Surface Mount	100 kHz	6.7 A	0.26 "	0.274 "	8 A	4.7 ÁH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded		6.95 mm	6.6 mm	26 mOhm
Delta Electronics/Cyntec CMLE063T-R12MS0R657	20 %	Surface Mount	100 kHz	40 A	0.26 " 6.6 mm	0.285 in 7.25 mm	42.5 A	120 nH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded	0.65 mOhm
Delta Electronics/Cyntec CMLE063T-R15MS0R987	20 %	Surface Mount	100 kHz	35 A	0.26 " 6.6 mm	0.285 in 7.25 mm	35 A	150 nH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded	0.98 mOhm
Delta Electronics/Cyntec CMLE063T-R36MS	20 %	Surface Mount	100 kHz	25 A	0.26 " 6.6 mm	0.285 in 7.25 mm		360 nH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded				2.55 mOhm
Delta Electronics/Cyntec CMLE063T-2R2MS	20 %	Surface Mount	100 kHz	10 A	0.26 "	0.274 "		2.2 µH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded		6.95 mm	6.6 mm	12.8 mOhm
Delta Electronics/Cyntec CMLE063T-6R8MS	20 %	Surface Mount	100 kHz	5.5 Amps	0.26 "	0.274 "	6.1 A	6.8 µH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded		6.95 mm	6.6 mm	28 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.51
		10	$ 1.27
		25	$ 1.16
		50	$ 1.09
		100	$ 0.90
		250	$ 0.83
		500	$ 0.79
	Digi-Reel®	1	$ 1.51
		10	$ 1.27
		25	$ 1.16
		50	$ 1.09
		100	$ 0.90
		250	$ 0.83
		500	$ 0.79
	Tape & Reel (TR)	1000	$ 0.72
		3000	$ 0.70
		5000	$ 0.67
		10000	$ 0.65

Description

General part information

CMLE063T Series

4.7 µH Shielded Inductor 6.7 A 26mOhm Max Nonstandard
