CMLE063T-6R8MS

Active

Delta Electronics/Cyntec

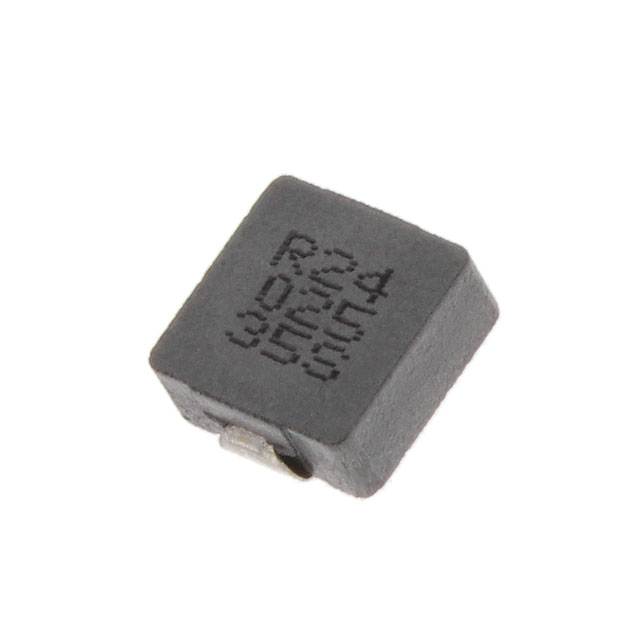

FIXED IND 6.8UH 5.5A 28MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMLE063T-6R8MS

Active

Delta Electronics/Cyntec

FIXED IND 6.8UH 5.5A 28MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMLE063T-6R8MS

Current - Saturation (Isat)	6.1 A
Current Rating (Amps)	5.5 Amps
DC Resistance (DCR) [Max]	28 mOhm
Height - Seated (Max)	3 mm
Height - Seated (Max) [Max]	0.118 in
Inductance	6.8 µH
Inductance Frequency - Test	100 kHz
Material - Core	Metal
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension [x]	6.95 mm
Size / Dimension [x]	0.274 "
Size / Dimension [y]	6.6 mm
Size / Dimension [y]	0.26 "
Tolerance	20 %

CMLE063T Series

Part	Tolerance	Mounting Type	Inductance Frequency - Test	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Current - Saturation (Isat)	Inductance	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Material - Core	Shielding	DC Resistance (DCR)	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) [Max]
Delta Electronics/Cyntec CMLE063T-R15MS0R905	20 %	Surface Mount	100 kHz	38 A	0.26 " 6.6 mm	0.285 in 7.25 mm	41 A	150 nH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded	0.9 mOhm
Delta Electronics/Cyntec CMLE063T-R68MS	20 %	Surface Mount	100 kHz	16.5 A	0.26 "	0.274 "	17 A	0.68 µH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded		6.95 mm	6.6 mm
Delta Electronics/Cyntec CMLE063T-1R0MS	20 %	Surface Mount	100 kHz	16 A	0.26 "	0.274 "	14 A	1 µH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded		6.95 mm	6.6 mm	6.5 mOhm
Delta Electronics/Cyntec CMLE063T-R22MS	20 %	Surface Mount	100 kHz	37 A	0.26 " 6.6 mm	0.285 in 7.25 mm	32 A	220 nH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded				1.3 mOhm
Delta Electronics/Cyntec CMLE063T-4R7MS	20 %	Surface Mount	100 kHz	6.7 A	0.26 "	0.274 "	8 A	4.7 ÁH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded		6.95 mm	6.6 mm	26 mOhm
Delta Electronics/Cyntec CMLE063T-R12MS0R657	20 %	Surface Mount	100 kHz	40 A	0.26 " 6.6 mm	0.285 in 7.25 mm	42.5 A	120 nH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded	0.65 mOhm
Delta Electronics/Cyntec CMLE063T-R15MS0R987	20 %	Surface Mount	100 kHz	35 A	0.26 " 6.6 mm	0.285 in 7.25 mm	35 A	150 nH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded	0.98 mOhm
Delta Electronics/Cyntec CMLE063T-R36MS	20 %	Surface Mount	100 kHz	25 A	0.26 " 6.6 mm	0.285 in 7.25 mm		360 nH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded				2.55 mOhm
Delta Electronics/Cyntec CMLE063T-2R2MS	20 %	Surface Mount	100 kHz	10 A	0.26 "	0.274 "		2.2 µH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded		6.95 mm	6.6 mm	12.8 mOhm
Delta Electronics/Cyntec CMLE063T-6R8MS	20 %	Surface Mount	100 kHz	5.5 Amps	0.26 "	0.274 "	6.1 A	6.8 µH	Nonstandard	-55 °C	125 °C	3 mm	0.118 in	Metal	Shielded		6.95 mm	6.6 mm	28 mOhm
