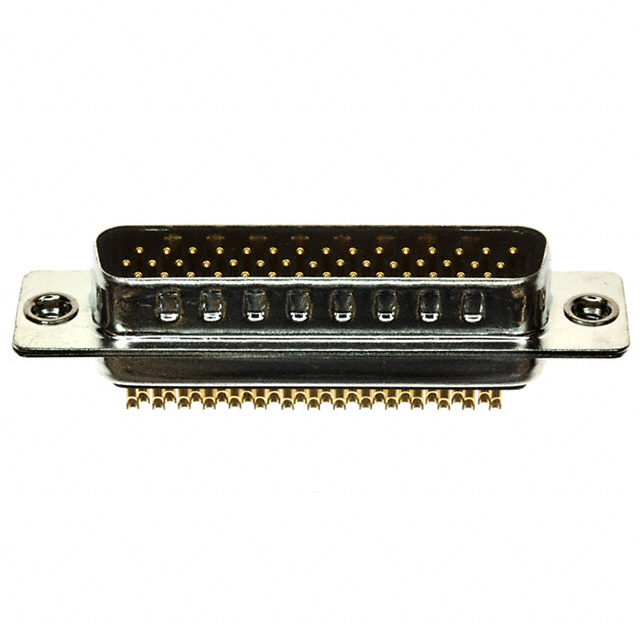

180-M44-103L011

Active

MH Connectors

D SUB CONNECTOR, HD44, PLUG, 180 M SERIES, 44 CONTACTS, DB, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +3

180-M44-103L011

Active

MH Connectors

D SUB CONNECTOR, HD44, PLUG, 180 M SERIES, 44 CONTACTS, DB, SOLDER

Deep-Dive with AI

DocumentsDatasheet Drawing EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	180-M44-103L011

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Shielded
Flange Feature	Cable Side
Material Flammability Rating	UL94 V-0
Number of Positions	44
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG

180-M44 Series

Part	Number of Rows	Features	Shell Material, Finish	Contact Material	Mounting Type	Material Flammability Rating	Contact Finish	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Connector Type	Flange Feature	Termination	Contact Type	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Dielectric Material	Color	Current Rating (Amps)	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]
MH Connectors 180-M44-113R011	3	Grounding Indents Shielded	Nickel Plated Steel	Copper Alloy	Panel Mount Through Hole	UL94 V-0	Gold	3	B DB	Male Pins Plug	4-40 Board Side	Solder	Signal	D-Sub High Density	-50 °C	125 °C	44	Polyamide (PA9T) Nylon 9T	Black	5 A	Flash
MH Connectors 180-M44-213R911	3	Board Lock Shielded	Nickel Plated Steel	Copper Alloy	Panel Mount Through Hole	UL94 V-0	Gold	3	B DB	Receptacle Female Sockets	Board Side (4-40) Mating Side Female Screwlock (4-40)	Solder	Signal	D-Sub High Density	-55 °C	125 °C	44	Polyamide (PA9T) Nylon 9T	Black	5 A	Flash
MH Connectors 180-M44-113R911	3	Board Lock Grounding Indents Shielded	Nickel Plated Steel	Copper Alloy	Panel Mount Through Hole	UL94 V-0	Gold	3	B DB	Male Pins Plug	Board Side (4-40) Mating Side Female Screwlock (4-40)	Solder	Signal	D-Sub High Density	-50 °C	125 °C	44	Polyamide (PA9T) Nylon 9T	Black	5 A	Flash
MH Connectors 180-M44-103L011	3	Grounding Indents Shielded	Nickel Plated Steel	Brass		UL94 V-0	Gold	3	B DB	Male Pins Plug	Cable Side		Signal	D-Sub High Density	-55 °C	105 ░C	44	Polybutylene Terephthalate (PBT) Glass Filled	Black	5 A	Flash	24 AWG	28 AWG
MH Connectors 180-M44-203L011	3	Shielded	Nickel Plated Steel	Copper Alloy		UL94 V-0	Gold	3	B DB	Receptacle Female Sockets	Cable Side		Signal	D-Sub High Density	-55 °C	125 °C	44	Polybutylene Terephthalate (PBT) Glass Filled	Black	3 A	Flash	24 AWG	28 AWG
MH Connectors 180-M44-103L021	3	Grounding Indents Shielded	Nickel Plated Steel	Brass		UL94 V-0	Gold	3	B DB	Male Pins Plug	Cable Side		Signal	D-Sub High Density	-55 °C	105 ░C	44	Polybutylene Terephthalate (PBT) Glass Filled	Black	5 A	Flash	24 AWG	28 AWG
MH Connectors 180-M44-213R031	3	Shielded	Nickel Plated Steel	Copper Alloy	Panel Mount Through Hole	UL94 V-0	Gold	3	B DB	Receptacle Female Sockets	4-40	Solder	Signal	D-Sub High Density	-55 °C	125 °C	44	Polyamide (PA9T) Nylon 9T	Black	5 A	Flash
MH Connectors 180-M44-213R051	3		Nickel Plated Steel	Copper Alloy	Panel Mount Through Hole	UL94 V-0	Gold	3	B DB	Receptacle Female Sockets	4-40 Board Side	Solder	Signal	D-Sub High Density	-55 °C	125 °C	44	Polyamide (PA9T) Nylon 9T	Black	5 A	Flash
MH Connectors 180-M44-103L001	3	Grounding Indents Shielded	Nickel Plated Steel	Brass		UL94 V-0	Gold	3	B DB	Male Pins Plug	Housing/Shell (Unthreaded)		Signal	D-Sub High Density	-55 °C	105 ░C	44	Polybutylene Terephthalate (PBT) Glass Filled	Black	5 A	Flash	24 AWG	28 AWG
MH Connectors 180-M44-113R021	3	Grounding Indents Shielded	Nickel Plated Steel	Copper Alloy	Panel Mount Through Hole	UL94 V-0	Gold	3	B DB	Male Pins Plug	4-40 Board Side	Solder	Signal	D-Sub High Density	-50 °C	125 °C	44	Polyamide (PA9T) Nylon 9T	Black	5 A	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 13.58
		10	$ 12.03
		25	$ 11.57
		50	$ 11.11
		100	$ 10.49
		250	$ 9.57
		450	$ 8.95
		950	$ 8.21
Newark	Each	10	$ 13.75
		100	$ 11.55
		500	$ 9.72
		1000	$ 8.56
		5000	$ 8.13

Description

General part information

180-M44 Series

44 Position D-Sub, High Density Plug, Male Pins Connector
