UB216SKG036CF

Active

NKK Switches

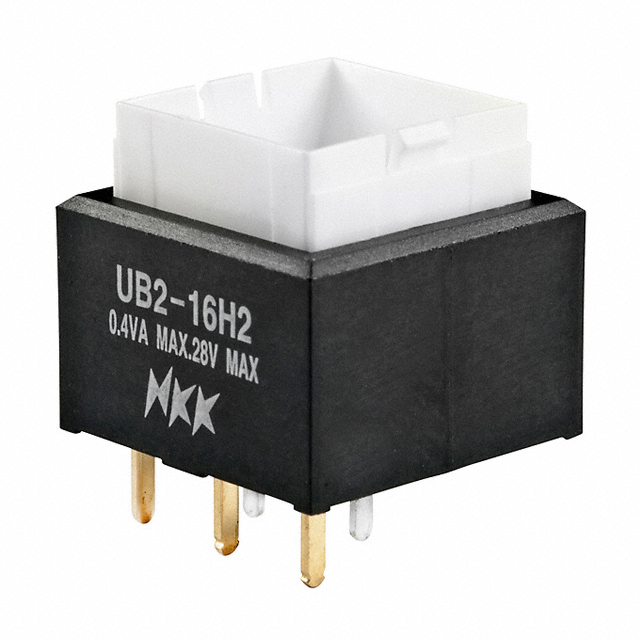

LOW PROFILE PUSHBUTTON; POLES: SPDT; CIRCUITS: ON-ON; CURRENT RATING: 0.4VA (AC/DC); RATING (AC): 28V; RATING (DC): 28V; ACTUATOR TYPE: PLUNGER FOR CAP; ILLUMINATION COLOR: LED, RED/GREEN; ILLUMINATION VOLTAGE: 2.1, 3.5 VDC; MOUNTING TYPE: THROUGH HOLE; TERMINATION STYLE: PC PIN; FEATURES: EPOXY SEALED TERMINALS; RATING: 0.4; ILLUMINATION: ILLUMINATED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUB2 Indicators Datasheet

UB216SKG036CF

Active

NKK Switches

Deep-Dive with AI

DocumentsUB2 Indicators Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB216SKG036CF

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	200000 Cycles
Features	Sealed - Fully
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	2.1 VDC, 3.5 VDC
Mechanical Life	200000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-On
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

UB216SK Series

Part	Illumination Type, Color	Illumination Voltage (Nominal)	Mechanical Life	Switch Function	Actuator Type	Electrical Life	Type	Color - Actuator/Cap	Features	Voltage Rating - DC	Current Rating (Amps)	Actuator Marking	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Style	Voltage Rating - AC
NKK Switches UB216SKG03N-5C	Green/Red LED	2.1 VDC 3.5 VDC	200000 Cycles	On-On	Button Square	200000 Cycles	Illuminated Standard	Clear	Sealed - Fully	28 V	0.4 VA	No Marking	SPDT	50 °C	-25 °C	Through Hole	PC Pin	28 V
NKK Switches UB216SKG036CF	Green/Red LED	2.1 VDC 3.5 VDC	200000 Cycles	On-On	Plunger for Cap	200000 Cycles	Illuminated Standard		Sealed - Fully	28 V	0.4 VA	No Marking	SPDT	50 °C	-25 °C	Through Hole	PC Pin	28 V
NKK Switches UB216SKW036F	Green LED	3.5 VDC	200000 Cycles	On-On	Plunger for Cap	10000 Cycles	Illuminated Standard		Sealed - Fully	30 V	5 A	No Marking	SPDT	50 °C	-25 °C	Through Hole	PC Pin	125 V
NKK Switches UB216SKW035D-1JD	Amber LED	2 VDC	200000 Cycles	On-On	Button Square	10000 Cycles	Illuminated Standard	Clear	Sealed - Fully	30 V	5 A	No Marking	SPDT	50 °C	-25 °C	Through Hole	PC Pin	125 V
NKK Switches UB216SKG035C-1JC	LED Red	1.85 VDC	200000 Cycles	On-On	Button Square	200000 Cycles	Illuminated Standard	Clear (Red Filter/Diffuser)	Sealed - Fully	28 V	0.4 VA	No Marking	SPDT	50 °C	-25 °C	Through Hole	PC Pin	28 V
NKK Switches UB216SKW03N			200000 Cycles	On-On	Plunger for Cap	10000 Cycles	Standard		Sealed - Fully	30 V	5 A	No Marking	SPDT	70 °C	-25 °C	Through Hole	PC Pin	125 V
NKK Switches UB216SKW035C-1JB	LED Red	1.85 VDC	200000 Cycles	On-On	Button Square	10000 Cycles	Illuminated Standard	Clear	Sealed - Fully	30 V	5 A	No Marking	SPDT	50 °C	-25 °C	Through Hole	PC Pin	125 V
NKK Switches UB216SKG03N-4JB			200000 Cycles	On-On	Button Square	200000 Cycles	Standard	Clear	Sealed - Fully	28 V	0.4 VA	No Marking	SPDT	70 °C	-25 °C	Through Hole	PC Pin	28 V
NKK Switches UB216SKG035F-1JF	Green LED	2.1 VDC	200000 Cycles	On-On	Button Square	200000 Cycles	Illuminated Standard	Clear	Sealed - Fully	28 V	0.4 VA	No Marking	SPDT	50 °C	-25 °C	Through Hole	PC Pin	28 V
NKK Switches UB216SKG03N-5B			200000 Cycles	On-On	Button Square	200000 Cycles	Standard	White	Sealed - Fully	28 V	0.4 VA	No Marking	SPDT	70 °C	-25 °C	Through Hole	PC Pin	28 V
