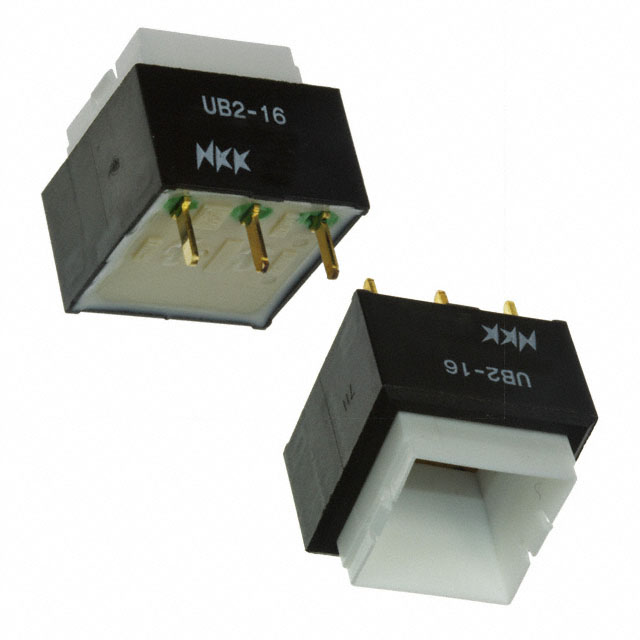

UB216SKG03N-4JB

Active

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet UB2 Indicators

UB216SKG03N-4JB

Active

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet UB2 Indicators

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB216SKG03N-4JB

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	0.4 VA
Electrical Life	200000 Cycles
Features	Sealed - Fully
Mechanical Life	200000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-On
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

UB216SK Series

Part	Illumination Type, Color	Illumination Voltage (Nominal)	Mechanical Life	Switch Function	Actuator Type	Electrical Life	Type	Color - Actuator/Cap	Features	Voltage Rating - DC	Current Rating (Amps)	Actuator Marking	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Style	Voltage Rating - AC
NKK Switches UB216SKG03N-5C	Green/Red LED	2.1 VDC 3.5 VDC	200000 Cycles	On-On	Button Square	200000 Cycles	Illuminated Standard	Clear	Sealed - Fully	28 V	0.4 VA	No Marking	SPDT	50 °C	-25 °C	Through Hole	PC Pin	28 V
NKK Switches UB216SKG036CF	Green/Red LED	2.1 VDC 3.5 VDC	200000 Cycles	On-On	Plunger for Cap	200000 Cycles	Illuminated Standard		Sealed - Fully	28 V	0.4 VA	No Marking	SPDT	50 °C	-25 °C	Through Hole	PC Pin	28 V
NKK Switches UB216SKW036F	Green LED	3.5 VDC	200000 Cycles	On-On	Plunger for Cap	10000 Cycles	Illuminated Standard		Sealed - Fully	30 V	5 A	No Marking	SPDT	50 °C	-25 °C	Through Hole	PC Pin	125 V
NKK Switches UB216SKW035D-1JD	Amber LED	2 VDC	200000 Cycles	On-On	Button Square	10000 Cycles	Illuminated Standard	Clear	Sealed - Fully	30 V	5 A	No Marking	SPDT	50 °C	-25 °C	Through Hole	PC Pin	125 V
NKK Switches UB216SKG035C-1JC	LED Red	1.85 VDC	200000 Cycles	On-On	Button Square	200000 Cycles	Illuminated Standard	Clear (Red Filter/Diffuser)	Sealed - Fully	28 V	0.4 VA	No Marking	SPDT	50 °C	-25 °C	Through Hole	PC Pin	28 V
NKK Switches UB216SKW03N			200000 Cycles	On-On	Plunger for Cap	10000 Cycles	Standard		Sealed - Fully	30 V	5 A	No Marking	SPDT	70 °C	-25 °C	Through Hole	PC Pin	125 V
NKK Switches UB216SKW035C-1JB	LED Red	1.85 VDC	200000 Cycles	On-On	Button Square	10000 Cycles	Illuminated Standard	Clear	Sealed - Fully	30 V	5 A	No Marking	SPDT	50 °C	-25 °C	Through Hole	PC Pin	125 V
NKK Switches UB216SKG03N-4JB			200000 Cycles	On-On	Button Square	200000 Cycles	Standard	Clear	Sealed - Fully	28 V	0.4 VA	No Marking	SPDT	70 °C	-25 °C	Through Hole	PC Pin	28 V
NKK Switches UB216SKG035F-1JF	Green LED	2.1 VDC	200000 Cycles	On-On	Button Square	200000 Cycles	Illuminated Standard	Clear	Sealed - Fully	28 V	0.4 VA	No Marking	SPDT	50 °C	-25 °C	Through Hole	PC Pin	28 V
NKK Switches UB216SKG03N-5B			200000 Cycles	On-On	Button Square	200000 Cycles	Standard	White	Sealed - Fully	28 V	0.4 VA	No Marking	SPDT	70 °C	-25 °C	Through Hole	PC Pin	28 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 10.34
		10	$ 9.32
		25	$ 8.93
		40	$ 8.49
		80	$ 8.15
		230	$ 7.66
		440	$ 7.07
		945	$ 6.83
Newark	Each	1	$ 19.39
		5	$ 18.08
		10	$ 16.63
		25	$ 15.18
		50	$ 13.73
		100	$ 12.13
		250	$ 10.89

Description

General part information

UB216SK Series

Pushbutton Switch SPDT Standard Through Hole
