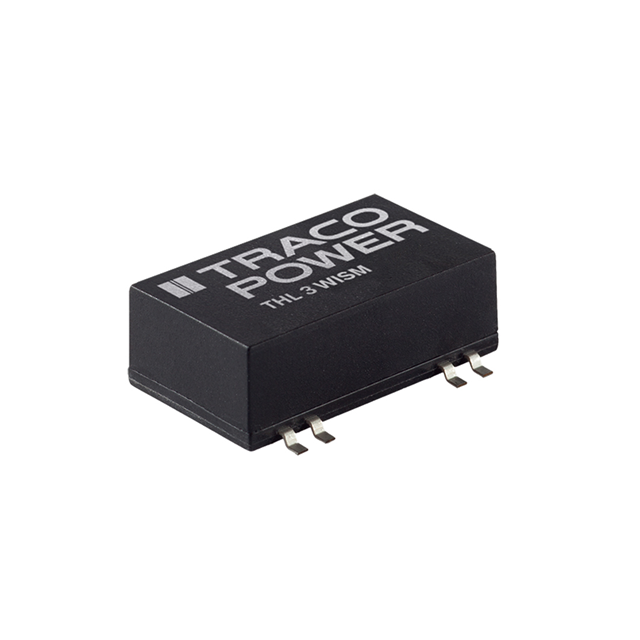

THL 3-2423WISM
Traco Power
DC DC CONVERTER +/-15V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
THL 3-2423WISM
Traco Power
DC DC CONVERTER +/-15V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | THL 3-2423WISM |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 100 mA |
| Current - Output (Max) | 100 mA |
| Efficiency | 80 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7 Leads |
| Package / Case | 16-SMD Module |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 0.94 in |
| Size / Dimension [x] | 24 mm |
| Size / Dimension [y] | 0.54 " |
| Size / Dimension [y] | 13.7 mm |
| Size / Dimension [z] | 8.3 mm |
| Size / Dimension [z] | 0.32 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 26.40 | |
| 10 | $ 23.30 | |||
| 25 | $ 22.53 | |||
| 50 | $ 21.97 | |||
| 100 | $ 21.41 | |||
| 250 | $ 20.71 | |||
| 500 | $ 18.23 | |||
Description
General part information
THL 3 Series
Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 9V - 36V Input
