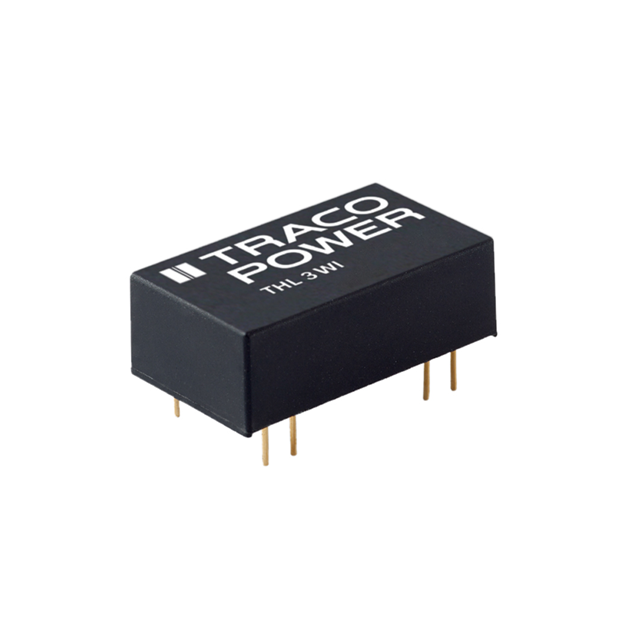

THL 3-2411WI
Traco Power
DC DC CONVERTER 5V 3W
Deep-Dive with AI
Search across all available documentation for this part.
THL 3-2411WI
Traco Power
DC DC CONVERTER 5V 3W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | THL 3-2411WI |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 600 mA |
| Efficiency | 78 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7 Leads |
| Package / Case | 16-DIP Module |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 23.8 mm |
| Size / Dimension [x] | 0.94 in |
| Size / Dimension [y] | 0.54 " |
| Size / Dimension [y] | 13.7 mm |
| Size / Dimension [z] | 0.31 in |
| Size / Dimension [z] | 8 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 21.10 | |
| 10 | $ 18.70 | |||
| 25 | $ 18.08 | |||
| 50 | $ 17.63 | |||
| 100 | $ 17.19 | |||
| 250 | $ 16.62 | |||
| 500 | $ 16.20 | |||
Description
General part information
THL 3 Series
Isolated Module DC DC Converter 1 Output 5V 600mA 9V - 36V Input
