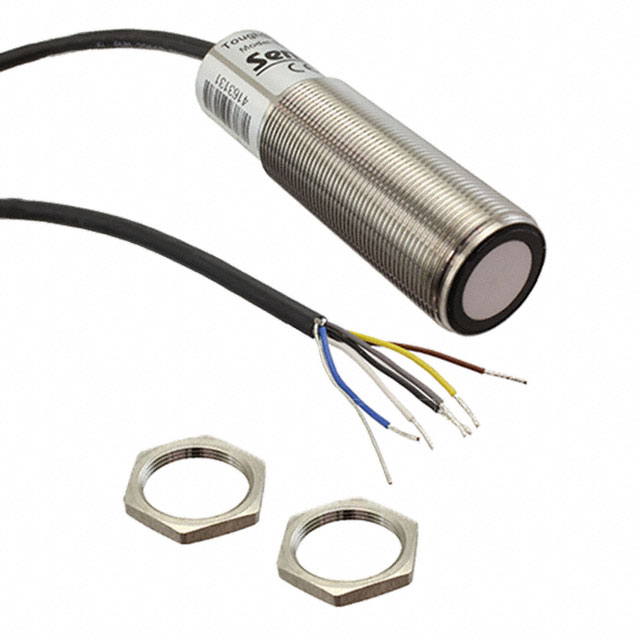

TSPC-30S1-232

Active

Senix Corporation

TOUGHSONIC 14 M30 RS-232

Search across all available documentation for this part.

Active

Senix Corporation

TOUGHSONIC 14 M30 RS-232

Technical Specifications

Parameters and characteristics for this part

Specification	TSPC-30S1-232

Indicator [custom]	No Indicator
Ingress Protection	IP68
Material - Body	Stainless Steel
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Type	NPN/PNP, Analog Current and Voltage
Package / Case	Cylinder, Threaded - M30
Sensing Distance	14 ft
Sensing Distance	4.3 m
Sensor Type	Ultrasonic
Shielding	Unshielded
Termination Style	Cable Leads
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Ingress Protection	Package / Case	Termination Style	Sensor Type	Sensing Distance	Sensing Distance	Indicator [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Body	Shielding	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]
Senix Corporation TSPC-30S1-485	IP68	Cylinder Threaded - M30	Cable Leads	Ultrasonic	14 ft	4.3 m	No Indicator	-40 °C	70 °C	Stainless Steel	Unshielded	Analog Current and Voltage NPN/PNP	30 VDC	10 VDC
Senix Corporation TSPC-30S1-232	IP68	Cylinder Threaded - M30	Cable Leads	Ultrasonic	14 ft	4.3 m	No Indicator	-40 °C	70 °C	Stainless Steel	Unshielded	Analog Current and Voltage NPN/PNP	30 VDC	10 VDC
Senix Corporation TSPC-30S2-485	IP68 NEMA 4X IP68 NEMA 6P	Cylinder Threaded - M30	Cable Leads	Ultrasonic	35.827 in	910 mm	No Indicator	-40 °C	70 °C	Stainless Steel	Unshielded	Analog Current and Voltage NPN/PNP	30 VDC	10 VDC
Senix Corporation TSPC-30S1K-485	IP68 NEMA 4X IP68 NEMA 6P	Cylinder Threaded - M30	Cable Leads	Ultrasonic	145.669 "	3700 mm	No Indicator	-40 °C	70 °C	Stainless Steel	Unshielded	Analog Current and Voltage NPN/PNP	30 VDC	10 VDC
Senix Corporation TSPC-30S2-232	IP68 NEMA 4X IP68 NEMA 6P	Cylinder Threaded - M30	Cable Leads	Ultrasonic	35.827 in	910 mm	No Indicator	-40 °C	70 °C	Stainless Steel	Unshielded	Analog Current and Voltage NPN/PNP	30 VDC	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TOUGHSONIC 14 M30 RS-232
