TSPC-30S2-232

Active

Senix Corporation

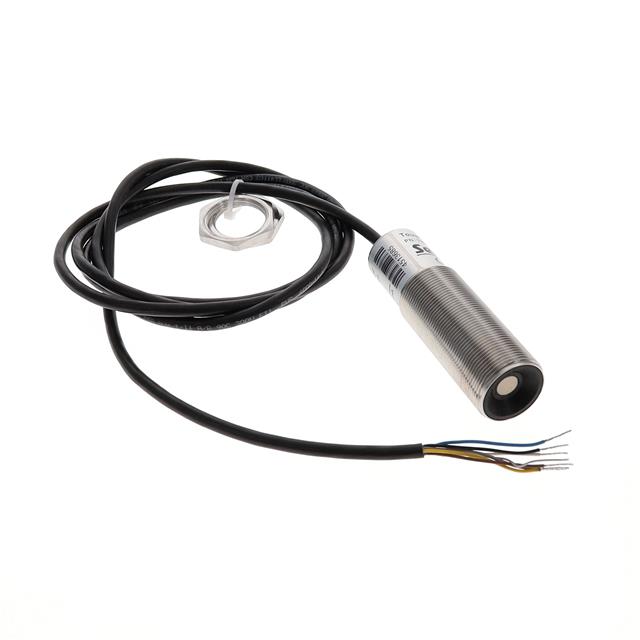

SENSOR PROX ULTRASONIC 910MM CYL

Search across all available documentation for this part.

Active

Senix Corporation

SENSOR PROX ULTRASONIC 910MM CYL

Technical Specifications

Parameters and characteristics for this part

Specification	TSPC-30S2-232

Indicator [custom]	No Indicator
Ingress Protection	IP68 NEMA 4X, IP68 NEMA 6P
Material - Body	Stainless Steel
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Type	NPN/PNP, Analog Current and Voltage
Package / Case	Cylinder, Threaded - M30
Sensing Distance	35.827 in
Sensing Distance	910 mm
Sensor Type	Ultrasonic
Shielding	Unshielded
Termination Style	Cable Leads
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Ingress Protection	Package / Case	Termination Style	Sensor Type	Sensing Distance	Sensing Distance	Indicator [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Body	Shielding	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]
Senix Corporation TSPC-30S1-485	IP68	Cylinder Threaded - M30	Cable Leads	Ultrasonic	14 ft	4.3 m	No Indicator	-40 °C	70 °C	Stainless Steel	Unshielded	Analog Current and Voltage NPN/PNP	30 VDC	10 VDC
Senix Corporation TSPC-30S1-232	IP68	Cylinder Threaded - M30	Cable Leads	Ultrasonic	14 ft	4.3 m	No Indicator	-40 °C	70 °C	Stainless Steel	Unshielded	Analog Current and Voltage NPN/PNP	30 VDC	10 VDC
Senix Corporation TSPC-30S2-485	IP68 NEMA 4X IP68 NEMA 6P	Cylinder Threaded - M30	Cable Leads	Ultrasonic	35.827 in	910 mm	No Indicator	-40 °C	70 °C	Stainless Steel	Unshielded	Analog Current and Voltage NPN/PNP	30 VDC	10 VDC
Senix Corporation TSPC-30S1K-485	IP68 NEMA 4X IP68 NEMA 6P	Cylinder Threaded - M30	Cable Leads	Ultrasonic	145.669 "	3700 mm	No Indicator	-40 °C	70 °C	Stainless Steel	Unshielded	Analog Current and Voltage NPN/PNP	30 VDC	10 VDC
Senix Corporation TSPC-30S2-232	IP68 NEMA 4X IP68 NEMA 6P	Cylinder Threaded - M30	Cable Leads	Ultrasonic	35.827 in	910 mm	No Indicator	-40 °C	70 °C	Stainless Steel	Unshielded	Analog Current and Voltage NPN/PNP	30 VDC	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR PROX ULTRASONIC 910MM CYL

Technical documentation and resources

No documents available
