NJ-BNCJ(40)

Obsolete

Hirose Electric USA, Inc.

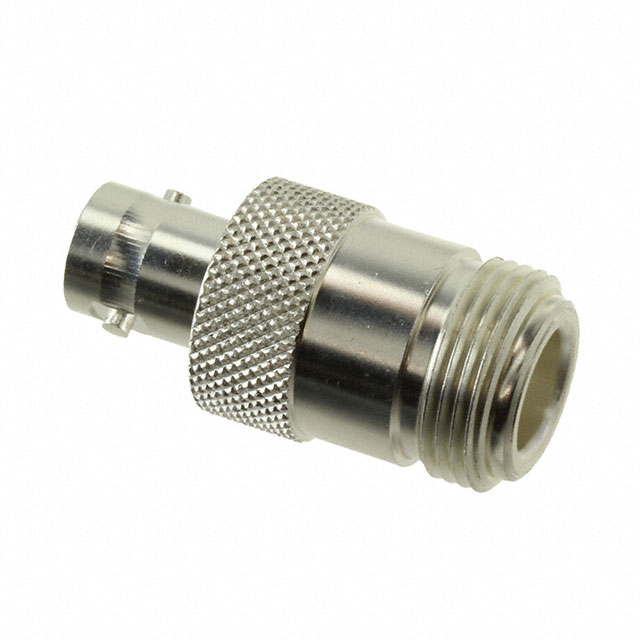

CONN ADAPT BNC JACK TO N JACK

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN ADAPT BNC JACK TO N JACK

Technical Specifications

Parameters and characteristics for this part

Specification	NJ-BNCJ(40)

Adapter Series	BNC to N
Adapter Type	Jack to Jack
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	2 GHz
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Mating Cycles	Impedance	Center Gender	Adapter Type	Convert To (Adapter End)	Style	Dielectric Material	Adapter Series	Convert From (Adapter End)	Mounting Type	Conversion Type	Frequency - Max [Max]	Fastening Type	Mounting Feature
Hirose Electric USA, Inc. NJ-BNCJ(40)	1000	50 Ohms	Female to Female	Jack to Jack	BNC Jack Female Socket	Straight	Polytetrafluoroethylene (PTFE)	BNC to N	Female Socket N Jack	Free Hanging (In-Line)	Between Series	2 GHz	Bayonet Lock Threaded
Hirose Electric USA, Inc. NJ-BNCJ-PA(40)	1000	50 Ohms	Female to Female	Jack to Jack	Female Socket N Jack	Straight	Polytetrafluoroethylene (PTFE)	BNC to N	BNC Jack Female Socket		Between Series	2 GHz	Bayonet Lock Threaded	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector N Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
