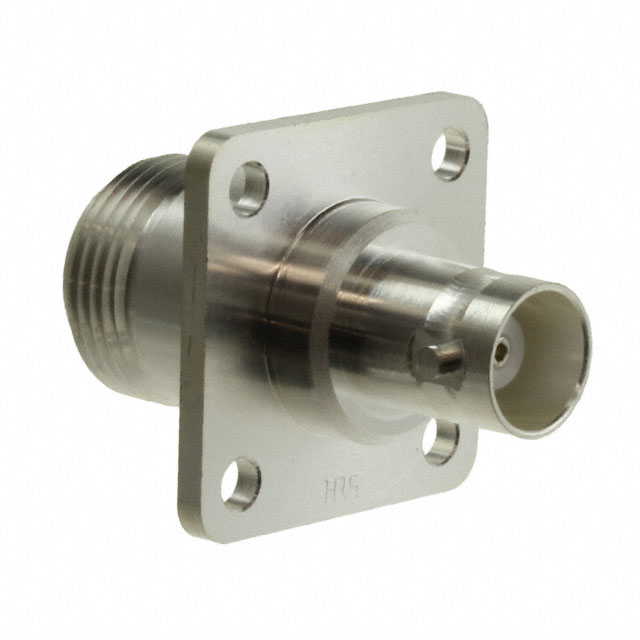

NJ-BNCJ-PA(40)

Obsolete

Hirose Electric USA, Inc.

CONN ADAPT BNC JACK TO N JACK

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN ADAPT BNC JACK TO N JACK

Technical Specifications

Parameters and characteristics for this part

Specification	NJ-BNCJ-PA(40)

Adapter Series	BNC to N
Adapter Type	Jack to Jack
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	2 GHz
Impedance	50 Ohms
Mating Cycles	1000
Mounting Feature	Flange
Style	Straight

Part	Mating Cycles	Impedance	Center Gender	Adapter Type	Convert To (Adapter End)	Style	Dielectric Material	Adapter Series	Convert From (Adapter End)	Mounting Type	Conversion Type	Frequency - Max [Max]	Fastening Type	Mounting Feature
Hirose Electric USA, Inc. NJ-BNCJ(40)	1000	50 Ohms	Female to Female	Jack to Jack	BNC Jack Female Socket	Straight	Polytetrafluoroethylene (PTFE)	BNC to N	Female Socket N Jack	Free Hanging (In-Line)	Between Series	2 GHz	Bayonet Lock Threaded
Hirose Electric USA, Inc. NJ-BNCJ-PA(40)	1000	50 Ohms	Female to Female	Jack to Jack	Female Socket N Jack	Straight	Polytetrafluoroethylene (PTFE)	BNC to N	BNC Jack Female Socket		Between Series	2 GHz	Bayonet Lock Threaded	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To N Jack, Female Socket 50 Ohms
