SS71800-041F
ActiveBEL MAGNETIC SOLUTIONS

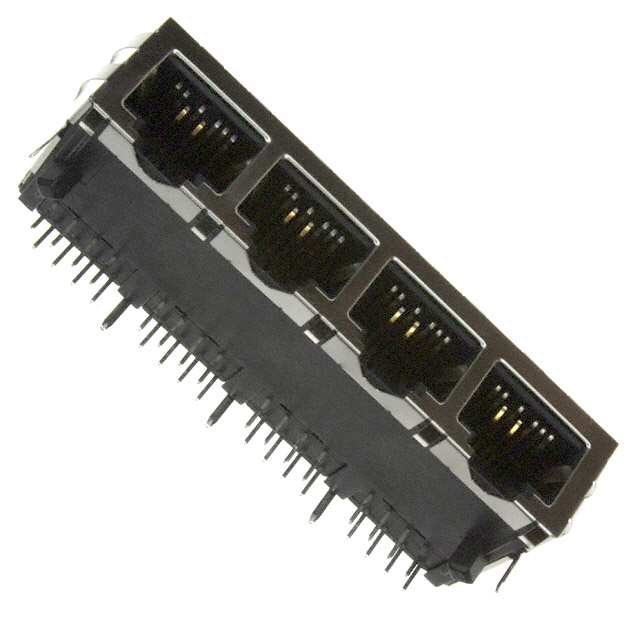

MODULAR CONNECTOR, RJ45 JACK, 1 X 4 (GANGED), 8P8C, CAT5E, THROUGH HOLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
SS71800-041F
ActiveBEL MAGNETIC SOLUTIONS
MODULAR CONNECTOR, RJ45 JACK, 1 X 4 (GANGED), 8P8C, CAT5E, THROUGH HOLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SS71800-041F |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Features | Board Guide |
| Housing Material | Thermoplastic |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Ports | 4 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Ratings | Cat5e |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.20 | |
| 10 | $ 7.38 | |||
| 32 | $ 6.95 | |||
| 64 | $ 6.77 | |||
| 96 | $ 6.60 | |||
| 256 | $ 5.88 | |||
| 448 | $ 5.53 | |||
| 960 | $ 4.88 | |||
Description
General part information
SS71800 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5e
