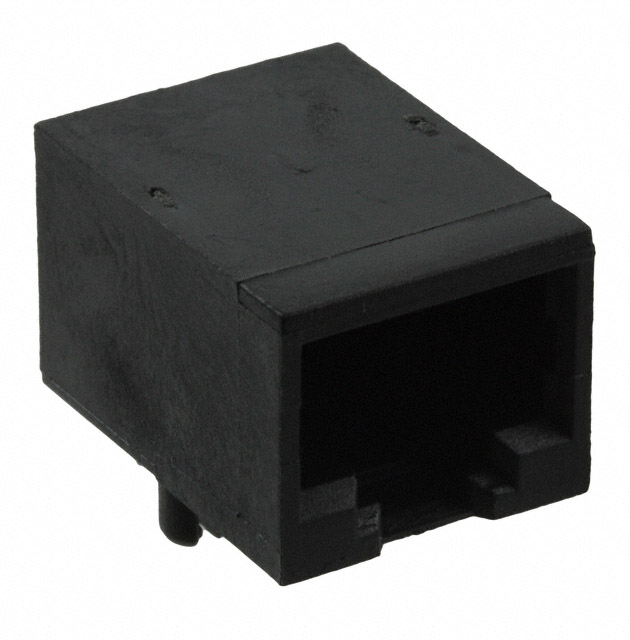

SS71800-003G

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C R/A UNSHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SS71800-003G

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C R/A UNSHLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS71800-003G

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Board Lock, EPP918A
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Ratings	Cat5e
Shielding	Unshielded
Tab Direction	Down
Termination	Solder

SS71800 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Contact Finish	Number of Positions/Contacts	Termination	Connector Type	Number of Ports	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Shielding	Ratings	Tab Direction	LED Color	Mounting Type	Number of Rows	Housing Material	Features	Orientation
BEL MAGNETIC SOLUTIONS SS71800-019F	85 °C	-40 °C	90 °	Gold	8p8c (RJ45 Ethernet)	Solder	Jack	1	Copper Alloy	50 µin	1.27 µm	Shielded EMI Finger	Cat5	Down	Does Not Contain LED	Through Hole	1	Thermoplastic
BEL MAGNETIC SOLUTIONS SS71800-003G	85 °C	-40 °C	90 °	Gold	8p8c (RJ45 Ethernet)	Solder	Jack	1	Copper Alloy	30 Áin	0.76 Ám	Unshielded	Cat5e	Down	Does Not Contain LED	Through Hole	1	Thermoplastic	Board Lock EPP918A
BEL MAGNETIC SOLUTIONS SS71800-041F	85 °C	-40 °C	90 °	Gold	8p8c (RJ45 Ethernet)	Solder	Jack	4	Copper Alloy	30 Áin	0.76 Ám	Shielded EMI Finger	Cat5e	Down	Does Not Contain LED	Through Hole	1	Thermoplastic	Board Guide
BEL MAGNETIC SOLUTIONS SS71800-018F	85 °C	-40 °C	90 °	Gold	8p8c (RJ45 Ethernet)	Solder	Jack	1	Copper Alloy	30 Áin	0.76 Ám	Shielded EMI Finger	Cat5	Down	Does Not Contain LED	Through Hole	1	Thermoplastic
BEL MAGNETIC SOLUTIONS SS71800-016F	85 °C	-40 °C		Gold			Jack		Copper Alloy									Thermoplastic Glass Filled
BEL MAGNETIC SOLUTIONS SS71800-019G	85 °C	-40 °C	90 °	Gold	8p8c (RJ45 Ethernet)	Solder	Jack	1	Copper Alloy	50 µin	1.27 µm	Shielded EMI Finger	Cat5e	Down	Does Not Contain LED	Through Hole	1	Thermoplastic	Board Lock EPP918A
BEL MAGNETIC SOLUTIONS SS71800-029G	85 °C	-40 °C		Gold	8p8c (RJ45 Ethernet)	Solder	Jack	1	Copper Alloy	50 µin	1.27 µm	Shielded	Cat5e	User Selectable	Does Not Contain LED	Through Hole	1	Thermoplastic	Board Lock EPP918A	Vertical
BEL MAGNETIC SOLUTIONS SS71800-095F			90 °	Gold	8p8c (RJ45 Ethernet)	Solder	Jack	8	Copper Alloy	50 µin	1.27 µm	Shielded EMI Finger	Cat5e	Down	Does Not Contain LED	Panel Mount Through Hole	1	Thermoplastic	Board Guide
BEL MAGNETIC SOLUTIONS SS71800-035F	85 °C	-40 °C	90 °	Gold		Solder	Jack	2	Copper Alloy			Shielded	Cat5e	Down	Does Not Contain LED	Through Hole	1	Thermoplastic Glass Filled

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SS71800 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded Cat5e
