2903304

Active

Phoenix Contact

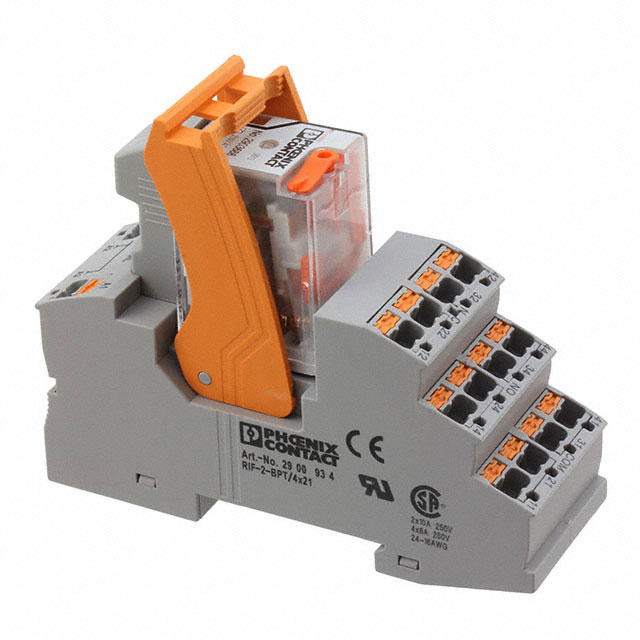

GENERAL PURPOSE RELAY, RIF-2 SERIES, INTERFACE, NON LATCHING, 4PDT, 230 VAC, 5 A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

2903304

Active

Phoenix Contact

GENERAL PURPOSE RELAY, RIF-2 SERIES, INTERFACE, NON LATCHING, 4PDT, 230 VAC, 5 A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2903304

Approval Agency	CSA
Coil Current	6.5 mA
Coil Resistance	35.39 kOhms
Coil Type	Non Latching
Coil Voltage	230 VAC
Contact Form	4PDT (4 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	5 A
Features	Lighted Indicator, Varistor, Socket Included
Mounting Type	DIN Rail
Operate Time	15 ms
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Spring Terminal

29033 Series

Part	Approval Agency	Features	Termination Style	Relay Type	Contact Rating (Current)	Coil Resistance	Mounting Type	Release Time	Coil Voltage	Coil Current	Operate Time	Coil Type	Switching Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Form
Phoenix Contact 2903361	CSA	Diode Lighted Indicator Socket Included	Spring Terminal	General Purpose	6 A	2.67 kOhms	DIN Rail	8 ms	24 VDC	9 mA	5 ms	Non Latching	250 VAC 250 VDC	-40 °C	60 °C	Silver Tin Oxide (AgSnO)	SPST-NO (1 Form A)
Phoenix Contact 2903336		Lighted Indicator Socket Included Varistor	Spring Terminal	General Purpose	50 mA	15 kOhms	DIN Rail	20 ms	120 VAC		12 ms	Non Latching	30 VAC 36 VDC	-40 °C	50 °C	Gold (Au) Silver Nickel (AgNi)	SPDT (1 Form C)
Phoenix Contact 2903375	CSA	Diode Lighted Indicator Socket Included	Screw Terminal	General Purpose	6 A	750 Ohms	DIN Rail	8 ms	12 VDC	16 mA	5 ms	Non Latching	250 VAC 250 VDC	-40 °C	60 °C	Silver Tin Oxide (AgSnO)	SPDT (1 Form C)
Phoenix Contact 2903346		Diode Lighted Indicator Socket Included	Screw Terminal	General Purpose	50 mA	1.33 kOhms	DIN Rail	10 ms	24 VDC	18 mA	8 ms	Non Latching	30 VAC 36 VDC	-40 °C	70 °C	Silver Nickel (AgNi)	DPDT (2 Form C)
Phoenix Contact 2903313	CSA	Lighted Indicator Socket Included Varistor	Spring Terminal	General Purpose	8.5 A	342.9 Ohms	DIN Rail	20 ms	24 VAC	70 mA	15 ms	Non Latching	250 VAC 250 VDC	-40 °C	50 °C	Silver Nickel (AgNi)	DPDT (2 Form C)
Phoenix Contact 2903306	CSA	Lighted Indicator Socket Included Varistor	Spring Terminal	General Purpose	5 A	342.9 Ohms	DIN Rail	20 ms	24 VAC	70 mA	15 ms	Non Latching	250 VAC 250 VDC	-40 °C	50 °C	Silver Nickel (AgNi)	4PDT (4 Form C)
Phoenix Contact 2903328		Lighted Indicator Socket Included Varistor	Spring Terminal	General Purpose	50 mA	15 kOhms	DIN Rail	20 ms	120 VAC		12 ms	Non Latching	30 VAC 36 VDC	-40 °C	50 °C	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)
Phoenix Contact 2903353		Lighted Indicator Socket Included Varistor	Screw Terminal	General Purpose	50 mA	727 Ohms	DIN Rail	20 ms	24 VAC	33 mA	12 ms	Non Latching	30 VAC 36 VDC	-40 °C	50 °C	Silver Nickel (AgNi)	SPDT (1 Form C)
Phoenix Contact 2903334	CSA	Diode Lighted Indicator Socket Included	Spring Terminal	General Purpose	8 A	1.33 kOhms	DIN Rail	10 ms	24 VDC	18 mA	8 ms	Non Latching	250 VAC 250 VDC	-40 °C	70 °C	Silver Nickel (AgNi)	DPDT (2 Form C)
Phoenix Contact 2903304	CSA	Lighted Indicator Socket Included Varistor	Spring Terminal	General Purpose	5 A	35.39 kOhms	DIN Rail	20 ms	230 VAC	6.5 mA	15 ms	Non Latching	250 VAC 250 VDC	-40 °C	50 °C	Silver Nickel (AgNi)	4PDT (4 Form C)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.45
Newark	Each	1	$ 20.19
		10	$ 18.54
		25	$ 17.23
		50	$ 16.10
		100	$ 14.88
		250	$ 13.66

Description

General part information

29033 Series

General Purpose Relay 4PDT (4 Form C) 230VAC Coil DIN Rail
