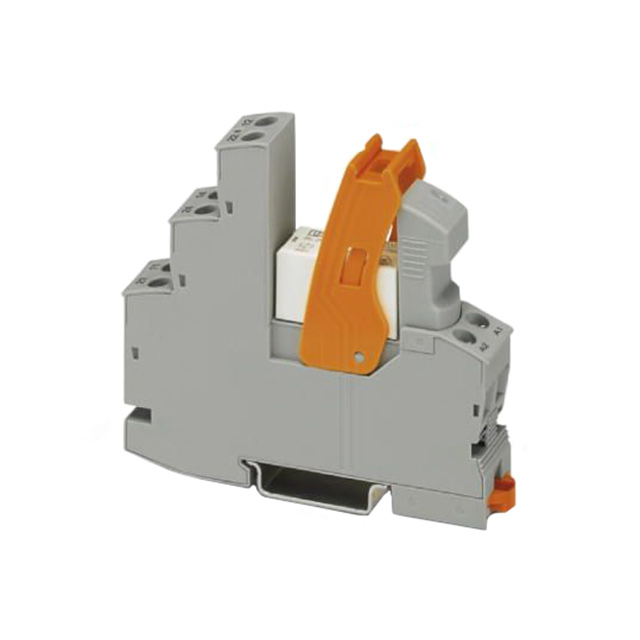

2903353
ObsoletePhoenix Contact
RELAY GEN PURPOSE SPDT 50MA 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2903353
ObsoletePhoenix Contact
RELAY GEN PURPOSE SPDT 50MA 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2903353 |
|---|---|
| Coil Current | 33 mA |
| Coil Resistance | 727 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 50 mA |
| Features | Lighted Indicator, Varistor, Socket Included |
| Mounting Type | DIN Rail |
| Operate Time | 12 ms |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage | 36 VDC, 30 VAC |
| Termination Style | Screw Terminal |
29033 Series
| Part | Approval Agency | Features | Termination Style | Relay Type | Contact Rating (Current) | Coil Resistance | Mounting Type | Release Time | Coil Voltage | Coil Current | Operate Time | Coil Type | Switching Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact | CSA | Diode Lighted Indicator Socket Included | Spring Terminal | General Purpose | 6 A | 2.67 kOhms | DIN Rail | 8 ms | 24 VDC | 9 mA | 5 ms | Non Latching | 250 VAC 250 VDC | -40 °C | 60 °C | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) |
Phoenix Contact | Lighted Indicator Socket Included Varistor | Spring Terminal | General Purpose | 50 mA | 15 kOhms | DIN Rail | 20 ms | 120 VAC | 12 ms | Non Latching | 30 VAC 36 VDC | -40 °C | 50 °C | Gold (Au) Silver Nickel (AgNi) | SPDT (1 Form C) | ||
Phoenix Contact | CSA | Diode Lighted Indicator Socket Included | Screw Terminal | General Purpose | 6 A | 750 Ohms | DIN Rail | 8 ms | 12 VDC | 16 mA | 5 ms | Non Latching | 250 VAC 250 VDC | -40 °C | 60 °C | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) |
Phoenix Contact | Diode Lighted Indicator Socket Included | Screw Terminal | General Purpose | 50 mA | 1.33 kOhms | DIN Rail | 10 ms | 24 VDC | 18 mA | 8 ms | Non Latching | 30 VAC 36 VDC | -40 °C | 70 °C | Silver Nickel (AgNi) | DPDT (2 Form C) | |
Phoenix Contact | CSA | Lighted Indicator Socket Included Varistor | Spring Terminal | General Purpose | 8.5 A | 342.9 Ohms | DIN Rail | 20 ms | 24 VAC | 70 mA | 15 ms | Non Latching | 250 VAC 250 VDC | -40 °C | 50 °C | Silver Nickel (AgNi) | DPDT (2 Form C) |
Phoenix Contact | CSA | Lighted Indicator Socket Included Varistor | Spring Terminal | General Purpose | 5 A | 342.9 Ohms | DIN Rail | 20 ms | 24 VAC | 70 mA | 15 ms | Non Latching | 250 VAC 250 VDC | -40 °C | 50 °C | Silver Nickel (AgNi) | 4PDT (4 Form C) |
Phoenix Contact | Lighted Indicator Socket Included Varistor | Spring Terminal | General Purpose | 50 mA | 15 kOhms | DIN Rail | 20 ms | 120 VAC | 12 ms | Non Latching | 30 VAC 36 VDC | -40 °C | 50 °C | Gold (Au) Silver Nickel (AgNi) | DPDT (2 Form C) | ||
Phoenix Contact | Lighted Indicator Socket Included Varistor | Screw Terminal | General Purpose | 50 mA | 727 Ohms | DIN Rail | 20 ms | 24 VAC | 33 mA | 12 ms | Non Latching | 30 VAC 36 VDC | -40 °C | 50 °C | Silver Nickel (AgNi) | SPDT (1 Form C) | |
Phoenix Contact | CSA | Diode Lighted Indicator Socket Included | Spring Terminal | General Purpose | 8 A | 1.33 kOhms | DIN Rail | 10 ms | 24 VDC | 18 mA | 8 ms | Non Latching | 250 VAC 250 VDC | -40 °C | 70 °C | Silver Nickel (AgNi) | DPDT (2 Form C) |
Phoenix Contact | CSA | Lighted Indicator Socket Included Varistor | Spring Terminal | General Purpose | 5 A | 35.39 kOhms | DIN Rail | 20 ms | 230 VAC | 6.5 mA | 15 ms | Non Latching | 250 VAC 250 VDC | -40 °C | 50 °C | Silver Nickel (AgNi) | 4PDT (4 Form C) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
29033 Series
General Purpose Relay SPDT (1 Form C) DIN Rail
