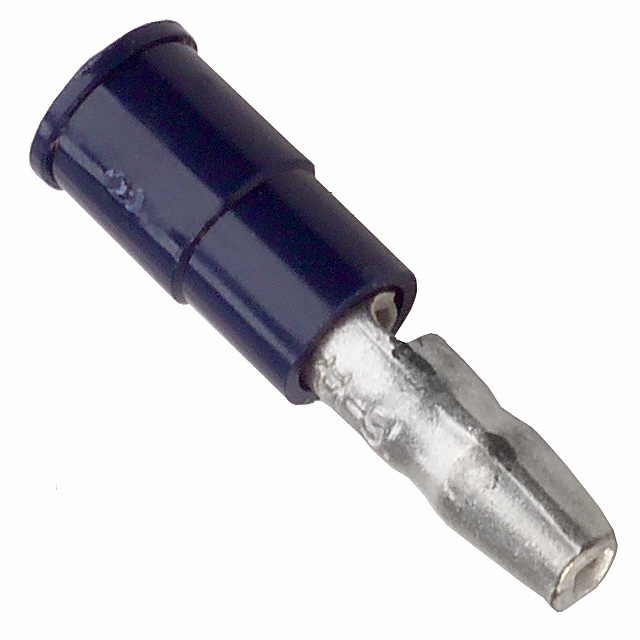

0190340009
ActiveMolex
CONN TERM PIN 14-16AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsProduct Specification
0190340009
ActiveMolex
CONN TERM PIN 14-16AWG CRIMP
Deep-Dive with AI
DocumentsProduct Specification
Technical Specifications
Parameters and characteristics for this part
| Specification | 0190340009 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Diameter - Barrel [diameter] | 3.96 mm |
| Diameter - Barrel [diameter] | 0.156 in |
| Insulation | Non-Mating End Insulated |
| Insulation Diameter | 11.43 mm |
| Insulation Diameter [diameter] | 0.45 in |
| Length - Barrel | 0.44 in |
| Length - Barrel | 11.18 mm |
| Length - Overall [x] | 0.89 in |
| Length - Overall [x] | 22.61 mm |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Terminal Type | Pin (Plug), Male |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.48 | |
| 10 | $ 0.41 | |||
| 25 | $ 0.38 | |||
| 50 | $ 0.36 | |||
| 100 | $ 0.35 | |||
| 250 | $ 0.32 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.29 | |||
| 3000 | $ 0.27 | |||
Description
General part information
019034 Series
Terminal Connector Male, Pin (Plug) 14-16 AWG Crimp Tin
